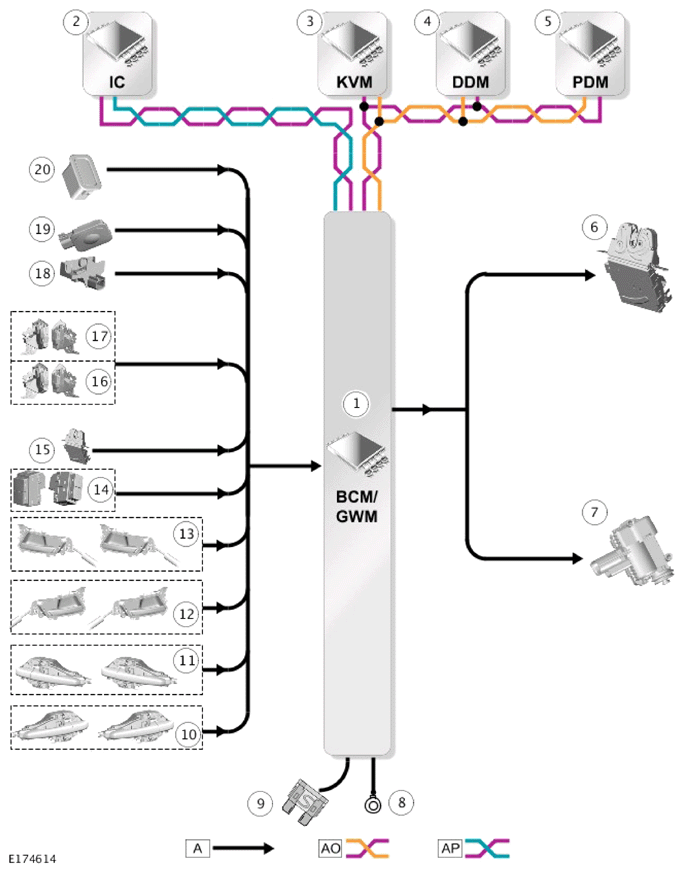

Input/Output Diagram - Sheet 1 Of 5 - Central Door Locking (CDL) System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AO = MS (MEDIUM SPEED) CAN (CONTROLLER AREA NETWORK) BODY SYSTEMS BUS, AP = MS CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Instrument Cluster (IC) |
| 3 | Keyless Vehicle Module (KVM) |
| 4 | Driver Door Module (DDM) |
| 5 | Passenger Door Module (PDM) |
| 6 | Luggage compartment lid latch - to locking motor |
| 7 | Fuel flap release motor |
| 8 | Ground |
| 9 | Permanent power feed |
| 10 | Left exterior door handles |
| 11 | Right exterior door handles |
| 12 | Left interior door handles |
| 13 | Right interior door handles |
| 14 | Interior lock and unlock switches |
| 15 | Luggage compartment lid latch - from ajar switch |
| 16 | Left door latches - from ajar switches |
| 17 | Right door latches - from ajar switches |
| 18 | Hood switch |
| 19 | Luggage compartment lid open switch |
| 20 | Luggage compartment lid unlock switch - Auxiliary lighting switch |
