Smart Key
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

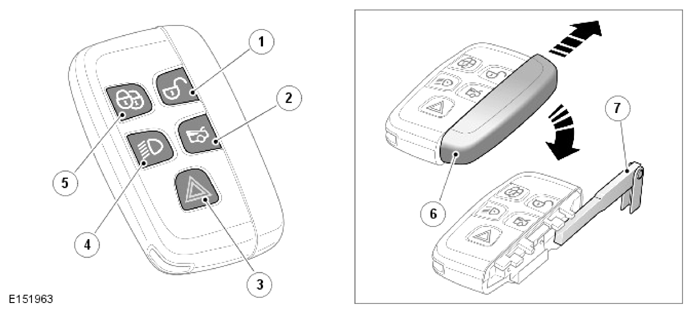

| ITEM | DESCRIPTION |
|---|---|
| 1 | Unlock switch |
| 2 | Luggage compartment switch |
| 3 | Panic alarm switch |
| 4 | Convenience headlamps switch |
| 5 | Lock switch |
| 6 | Emergency key cover |
| 7 | Emergency key |
The Smart key is available in three variants depending on market:
- 315 MHz
- 433 MHz
- 315 MHz low power.
In addition to the lock, unlock and luggage compartment switches for operation of the CDL system, the Smart key also has switches for:
- Convenience headlamps. For additional information, Refer to: EXTERIOR LIGHTING
- Panic alarm. For additional information, Refer to: ANTI-THEFT - ACTIVE
When a switch is pressed the Smart key outputs a related RF signal, which has an effective range of approximately 20 meters.

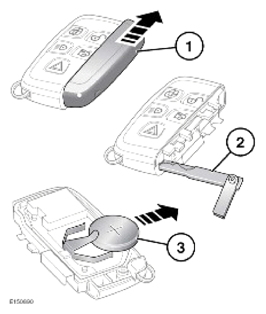

BATTERY REPLACEMENT
- Remove the cover.
- Open the Smart key with the emergency key.
- Replace the battery, then re-assemble the Smart key.
