Radio Frequency (RF) Receiver
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

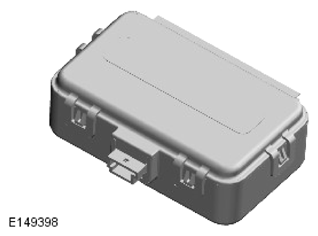

The RF signals from the Smart key are received by the RF receiver, which is located in the rear overhead console. The RF receiver is available in two variants depending on market:
- 315 MHz
- 433 MHz.
The RF receiver is powered by a permanent feed from the CJB (Central junction Box) and communicates with the KVM on a serial communication line.
