Low Frequency (LF) Antennas

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

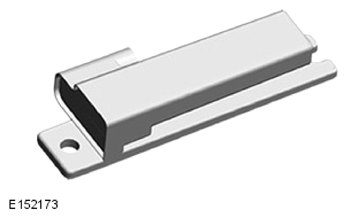

Vehicles with passive entry incorporate a LF antenna which are positioned in the following locations:

On the instrument panel cross-car beam, behind the center stack carriers.
In the floor console, under the stowage compartment.
On the rear floor, under the trims of the rear side of the luggage compartment.
Under the rear bumper.

The antennas are positioned so that their transmissions will activate a Smart key that is outside the vehicle and in close proximity either to the doors or luggage compartment.
