Keyless Vehicle Module (KVM)

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

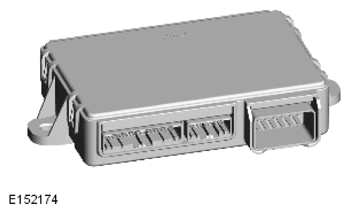

G14011340Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The KVM is installed at the base of the right C pillar, behind the side trim. The KVM is powered by two permanent feeds from the CJB and communicates with the BCM/GWM on the MS CAN body systems bus.
