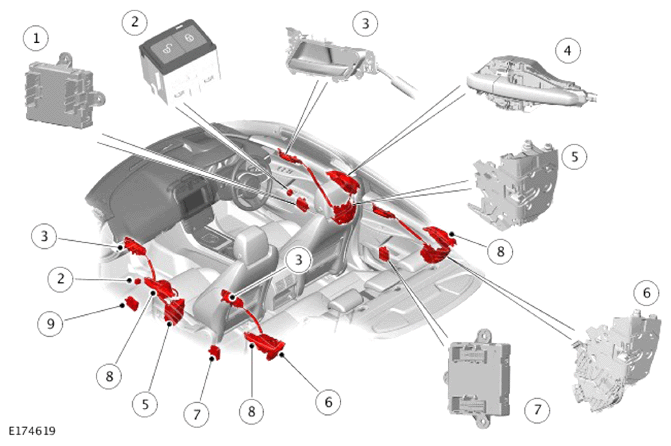

Component Location - Central Door Locking System (Sheet 2 Of 3)

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

ITEM	DESCRIPTION
1	Driver Door Module (DDM)
2	Central Door Locking (CDL) switch - 2 of
3	Interior door handle - 4 of
4	Driver door exterior door handle
5	Front door latch - 2 of
6	Rear door latch - 2 of
7	Rear Door Module (RDM) - 2 of
8	Passenger door exterior door handle - 3 of
9	Passenger Door Module (PDM)
