Component Location - Central Door Locking System (Sheet 1 Of 3)

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

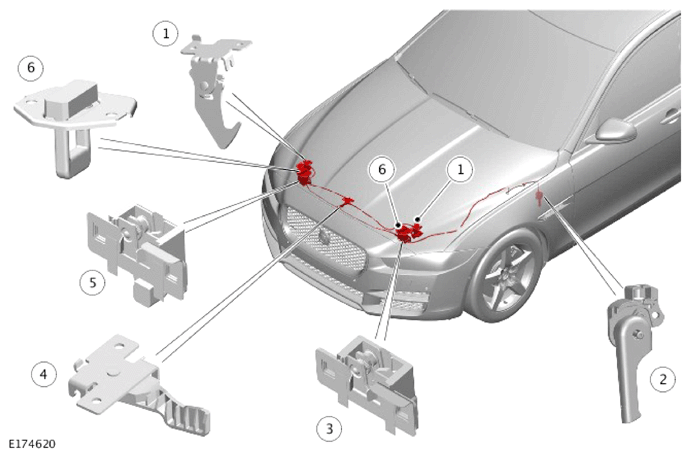

G14011333Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Hook
2 Hood release lever
3 Hood latch
4 Hood lever
5 Hood latch with hood switch
6 Striker
