Touchscreen Controls Of Configurable Tracks
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Some variation in the illustration may occur but the essential information is always correct.

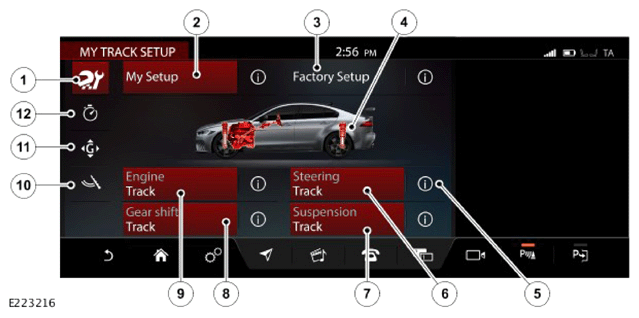

| ITEM | DESCRIPTION |
|---|---|
| 1 | Settings |
| 2 | My Setup |
| 3 | Factory Setup |
| 4 | Selected dynamic function |
| 5 | Function description |
| 6 | Steering settings |
| 7 | Suspension settings |
| 8 | Gear shift settings |
| 9 | Engine settings |
| 10 | Pedal graph |
| 11 | G meter |
| 12 | Stopwatch |
Vehicles with configurable tracks, allow the track mode settings to be configured via the Touchscreen (TS) for selected characteristics. Select either normal, or track settings. Select the extra features option from the home menu screen. Extra features are the following:
- Settings: Touch to display and adjust the configurable settings when in track mode.
- My Setup: Touch to switch the user settings ON or OFF.
- Factory Setup: Touch to switch ON or OFF.
- Selected track functions display.
- Function description: Touch to display.
- Steering: Touch to select the track or dynamic setting.
- Suspension: Touch to select the track or dynamic setting.
- Gear shift: Touch to select the track or dynamic setting.
- Engine: Touch to select the track or dynamic setting.
- Pedal graph: Touch to display a brake and accelerator graph, or a live display.
- G meter: Touch to display the current amount and direction of G force.
- Stopwatch: Touch to display live timings and split timings. When the 'Press to split' soft key has been selected, it is disabled for 3 seconds while the split time is displayed.
