JAGUARDRIVE SWITCHPACK

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

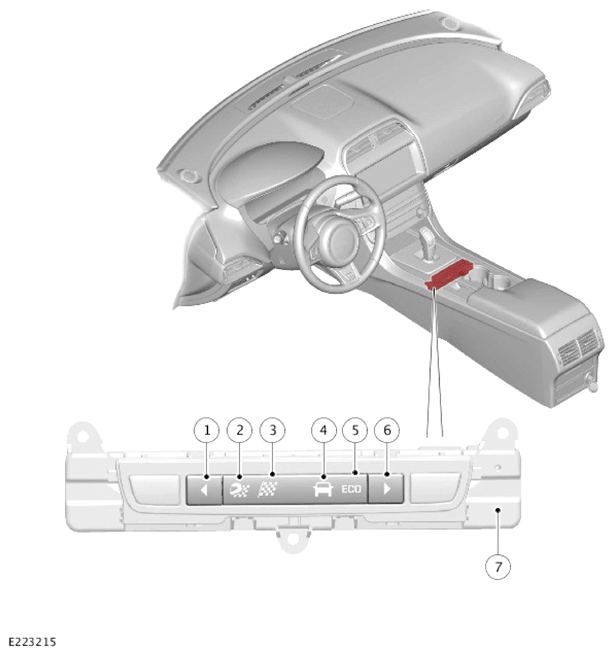

ITEM	DESCRIPTION
1	Selector switch left
2	Track mode
3	Dynamic mode
4	Normal mode
5	ECO mode
6	Selector switch right
7	JaguarDrive Switchpack (JDS)

The JaguarDrive Switchpack (JDS) is located in the floor console. In connection with ride and handling optimisation there are 2 switches and 4 modes available on it. Pressing either of the 2 outer (selector) switches the system moves through and selects the different driving modes.

The currently selected driving mode's Light Emitting Diode (LED) warning indicator illuminates to confirm the selection. The message center of the Instrument Cluster (IC) displays the relevant driving mode icon and a temporary confirmation message.

The JDS communicates with the Anti-lock Brake System (ABS) control module and with the Body Control Module/Gateway Module (BCM/GWM). The communication occurs on the High Speed (HS) Controller Area Network (CAN) chassis systems bus.
