Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

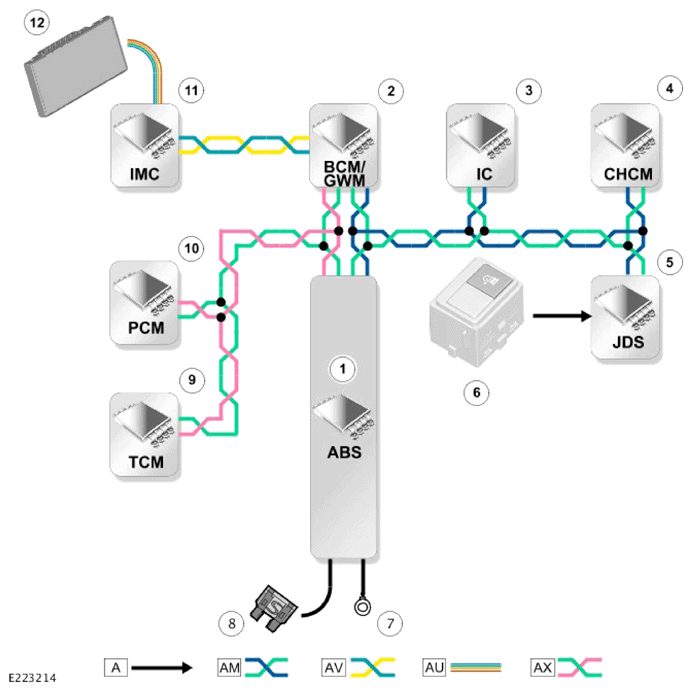

A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AU = AUTOMOTIVE PIXEL LINK 2 (APIX2): AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) control module |
| 2 | Body Control Module/Gateway Module (BCM/GWM) |
| 3 | Instrument Cluster (IC) |
| 4 | Chassis Control Module (CHCM) |
| 5 | JaguarDrive Switchpack (JDS) |
| 6 | Double switch for both all surface progress control and active exhaust |
| 7 | Ground |
| 8 | Power supply |
| 9 | Transmission Control Module (TCM) |
| 10 | Powertrain Control Module (PCM) |
| 11 | Infotainment Master Controller (IMC) |
| 12 | Touchscreen (TS) |
