Fuel Pump Driver Module

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

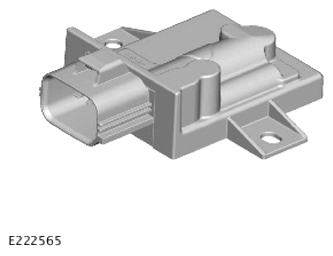

The Fuel Pump Driver Module (FPDM) is attached to a bracket and secured by 2 nuts to the right side C-pillar, behind the right side seat bolster.

The fuel pump operation is regulated by the FPDM which is controlled by the Powertrain Control Module (PCM). The FPDM regulates the flow and pressure supplied by controlling the operation of the fuel pump using a Pulse Width Modulation (PWM) output.

The FPDM is powered by a supply from the fuel pump relay in the Rear Junction Box (RJB). The FPDM supplies power to the fuel pump, and adjusts the power to control the speed of the fuel pump and the pressure and flow in the fuel delivery line.

The following conditions will energize the fuel pump relay:

Opening the driver door.
Operating the ignition switch.
Operating the ignition switch with applied brakes - Engine crank.

The FPDM supplies power to the fuel pump via hardwired connections.
