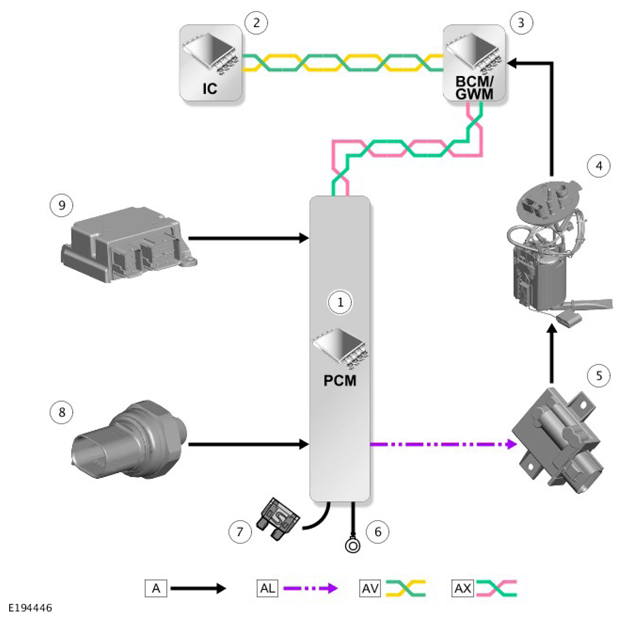

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEM BUS: AX = FLEXRAY SYSTEM BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Fuel pump module |
| 5 | Fuel Pump Driver Module (FPDM) |
| 6 | Ground |
| 7 | Power supply |
| 8 | Fuel pressure sensor - Low Pressure (LP) fuel system |
| 9 | Restraints Control Module (RCM) - Event signal |
