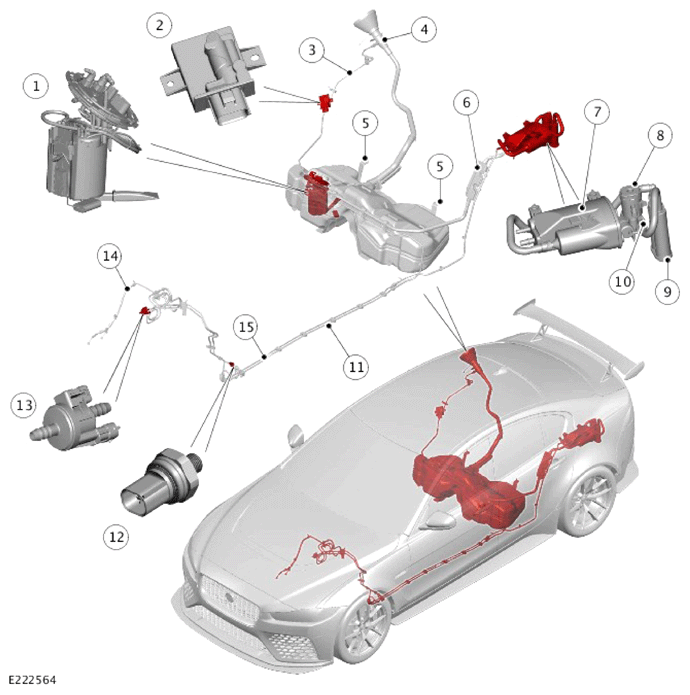

Component Location - 2 Of 2 - North AMERICAN Specification Vehicles Only
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel pump module |
| 2 | Fuel Pump Driver Module (FPDM) |
| 3 | Breather pipe |
| 4 | Fuel filler neck |
| 5 | Fuel tank support strap (2 off) |
| 6 | Fuel vapor separator |
| 7 | Evaporative emission canister |
| 8 | Diagnostic Module Tank Leakage (DMTL) filter |
| 9 | Secondary evaporative emissions canister |
| 10 | Diagnostic Module Tank Leakage (DMTL) pump |
| 11 | Fuel vapor pipe to purge valve |
| 12 | Fuel pressure sensor - Low Pressure (LP) fuel system |
| 13 | Purge valve |
| 14 | High Pressure (HP) fuel line |
| 15 | LP fuel line |
