Torque Specifications

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers with a green background are a single use component.

COMPONENT TORQUE LOCATION

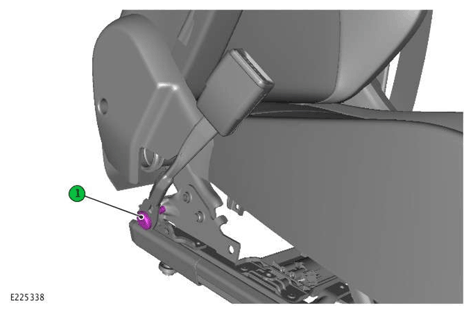

G12562818

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

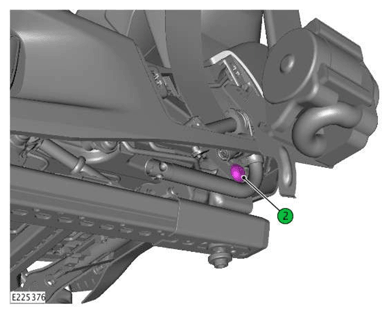

G12562819

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

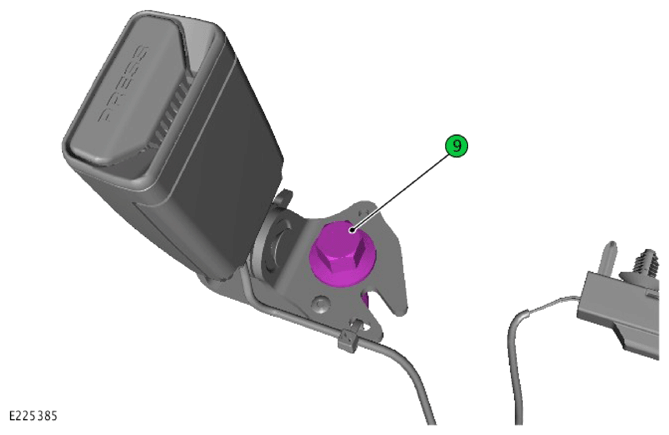

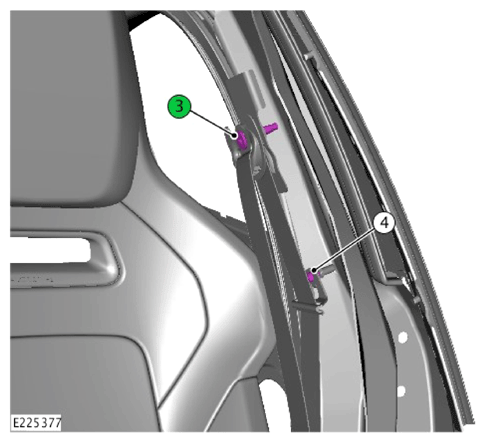

G14011796

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

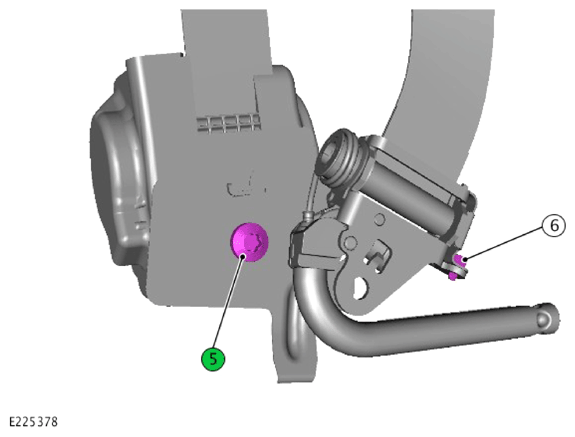

G14011797

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

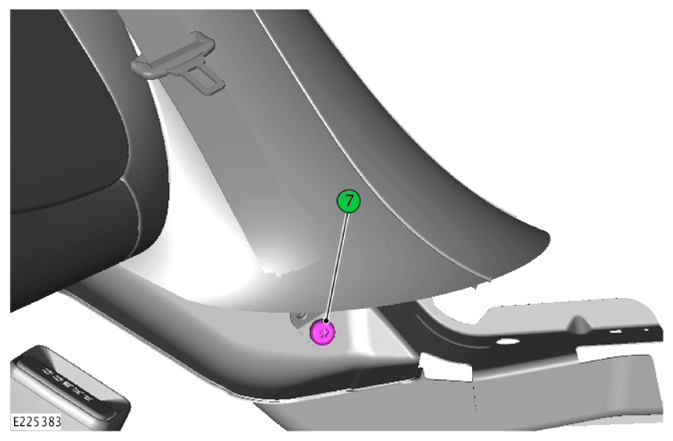

G14011798

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

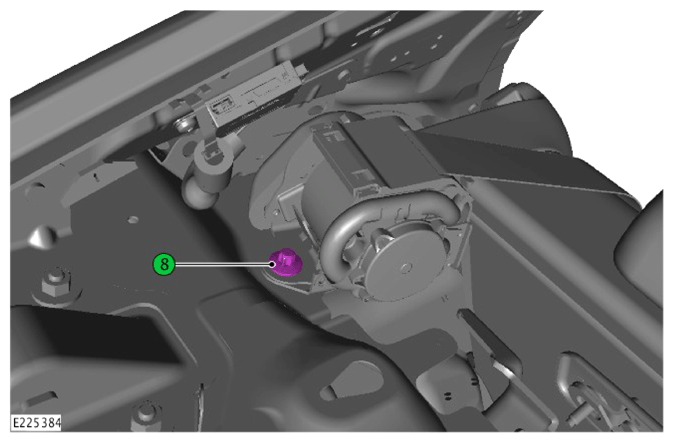

G14011799

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

G14011800

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

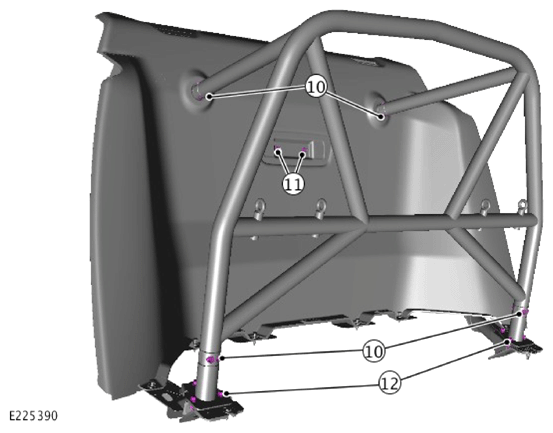

G14011801

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

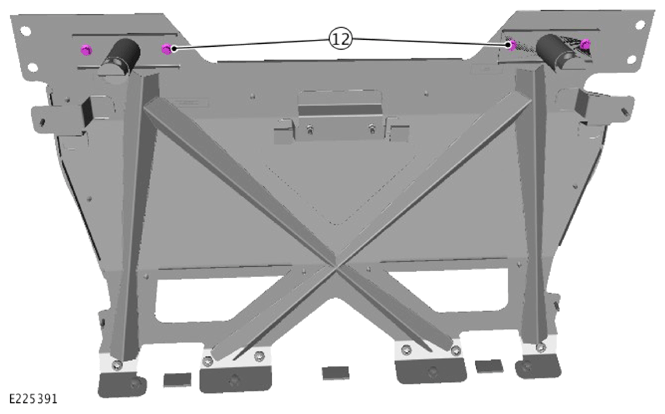

G14011802

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Front seatbelt buckle bolt	40	29.5	-
2	Front seatbelt lower anchor bolt	40	29.5	-
3	Front seatbelt upper anchor on B-pillar	40	29.5	-
4	Front seatbelt guide bolt	7	5.1	-
5	Front seatbelt retractor bolt on B-pillar	40	29.5	-
6	Retainer bolt on retractor	2	1.4	-
7	Rear seatbelt anchor bolt	40	29.5	-
8	Rear retractor bolt	40	29.5	-
9	Rear seatbelt buckle bolt	40	29.5	-
10	Seatbelt retention bar to mount	30	22.1	-
11	Access cover nuts	9	6.6	-
12	Seatbelt retention bar mount bolts	40	29.5	-
