Second Row SEATBELT Buckle - Project 8 (G2247568): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Remove the second row seat cushion.
Refer to: SECOND ROW SEAT CUSHION - PROJECT 8
-

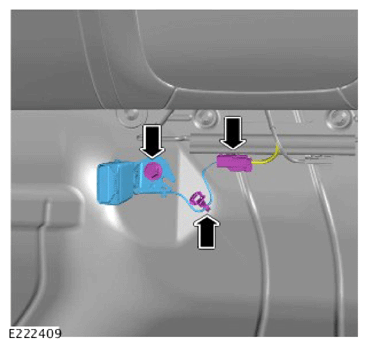

NOTE: Left side shown, right is similar.
- Disconnect the electrical connector.
- Release the wiring harness clip.
- Remove and discard the bolt.
- Remove the second row seatbelt buckle.
