Second Row SEATBELT Buckle - Project 8 (G2247568): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the component is being replaced, a 5 seat second row buckle is to be installed.

NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

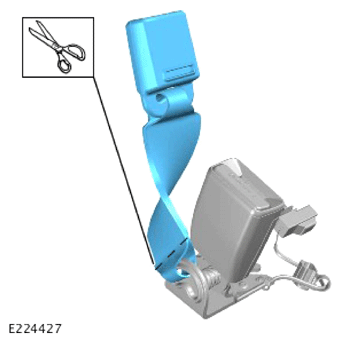

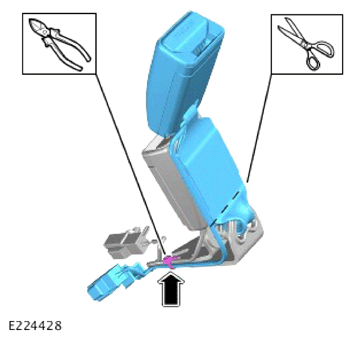

- Cut the second row center seatbelt webbing.
- Cut the cable tie.
- Remove the second row center seatbelt webbing.
NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

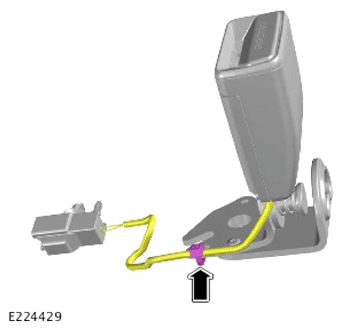

Secure the second row seatbelt buckle wiring harness.
NOTE: Left side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Cut the second row center seatbelt buckle webbing.
- Remove the second row center seatbelt buckle.
- Install the second row seatbelt buckle.
- Install and tighten the bolt.
  Renew Part: Seatbelt buckle bolt(s) Quantity: 1 .

  Torque : 40Nm
- Secure the wiring harness clip.
- Connect the electrical connector.
Install the second row seat cushion.
Refer to: SECOND ROW SEAT CUSHION - PROJECT 8
