Second Row SEATBELT - Project 8 (G2247567): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- To prevent accidental deployment, you must power down the Restraints Control Module (RCM). Wait at least 2 minutes after disconnect the startup battery ground cable before doing any work on the Supplementary Restraint System (SRS). If you do not follow these instructions, it can cause injury or death.
- Always wear safety glasses when working on an airbag equipped vehicle and when handling an airbag. Failure to follow this instruction may result in personal injury.
- Do not connect any electrical test device or equipment to the Supplementary Restraint System (SRS) connectors.
NOTE:
- This procedure contains illustrations for left side components, right side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- To avoid accidental deployment, wait at least 2 minutes after you disconnect the startup battery ground cable.
- Remove the parcel shelf.
Refer to: PARCEL SHELF

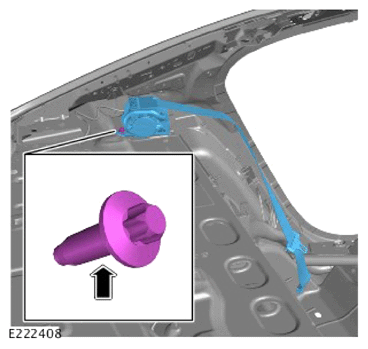

Remove and discard the bolt.
Disconnect the electrical connector.

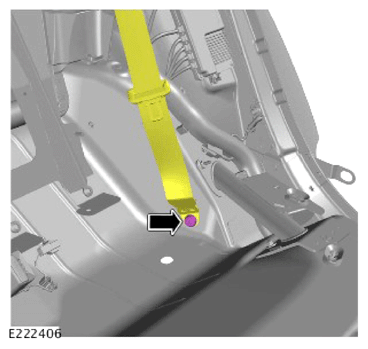

- Remove and discard the bolt.
- Remove the second row seatbelt retractor.
