SEATBELT Retention Bar - Project 8 (G2250423): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

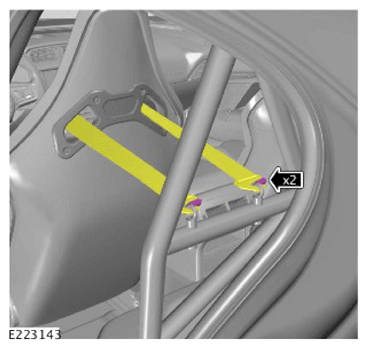

Release the 4-point harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

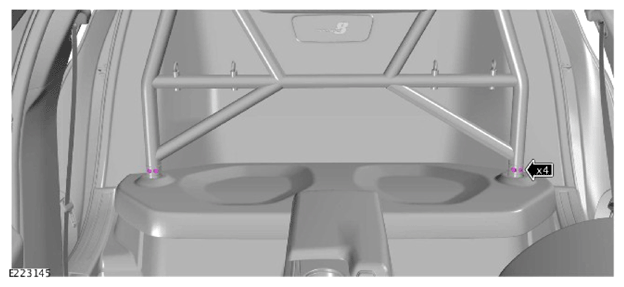

Remove the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

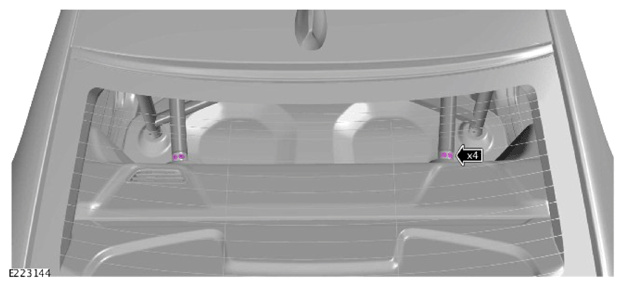

Remove the 4 bolts.
CAUTION: Make sure to protect the vehicle paintwork and trim.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

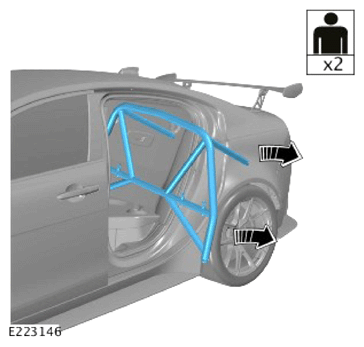

With assistance, remove the seatbelt retention bar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

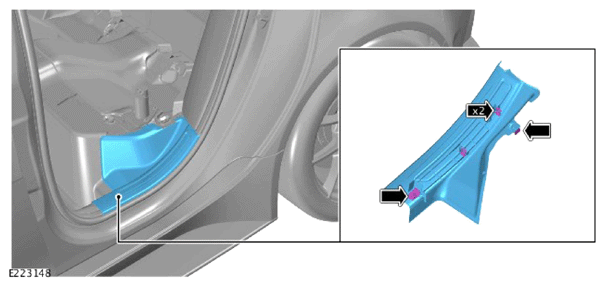

Remove the passenger compartment rear lower trim.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the rear treadplate.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

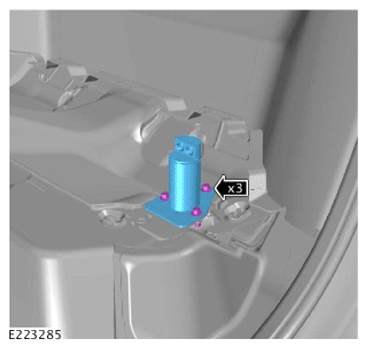

- Remove the 3 bolts.
- Remove the seatbelt retention bar lower mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

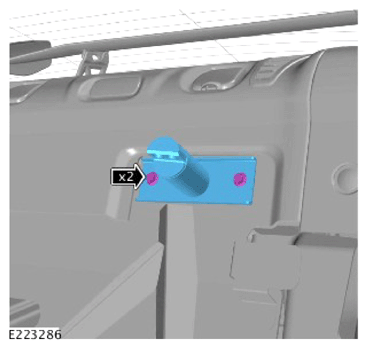

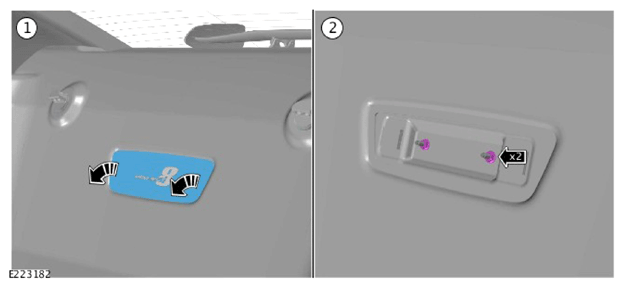

- Remove the access cover.
- Remove the 2 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

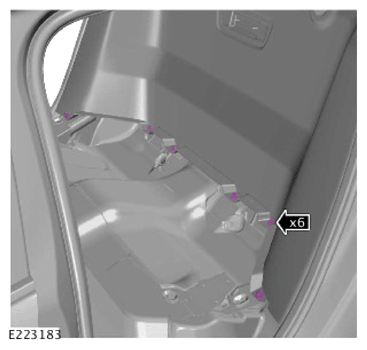

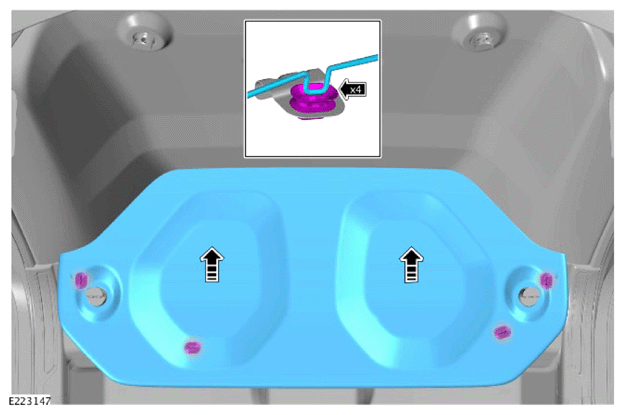

Remove the 6 passenger compartment rear trim clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

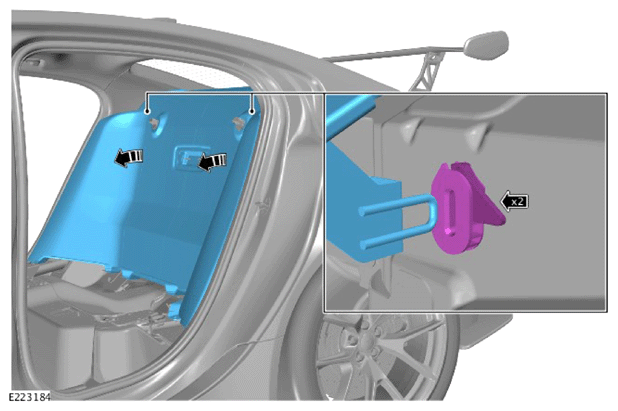

- Release the 2 clips.
- Remove the passenger compartment rear trim.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Remove the seatbelt retention bar mount.
