Rear Safety Belt Buckle (G1858930): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

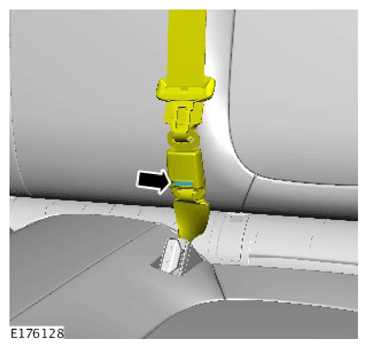

  1. G14011853Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable tool, release the center seat belt from the buckle.

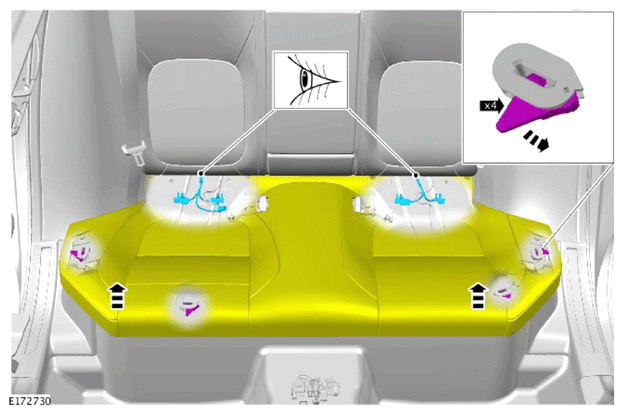

  2. G14011854Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

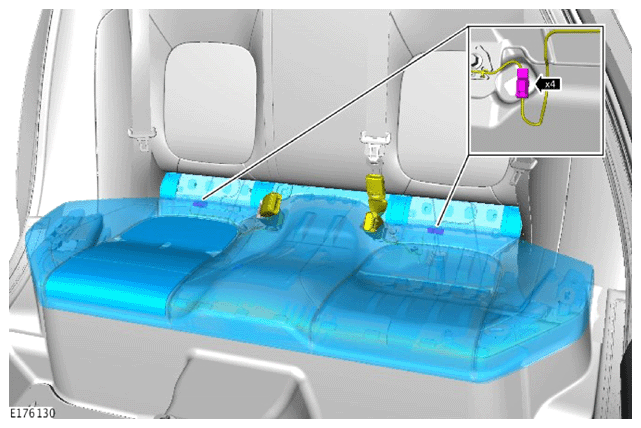

  3. G14011855Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

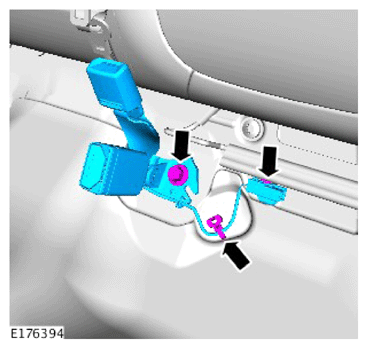

  4. G14011856Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 48Nm

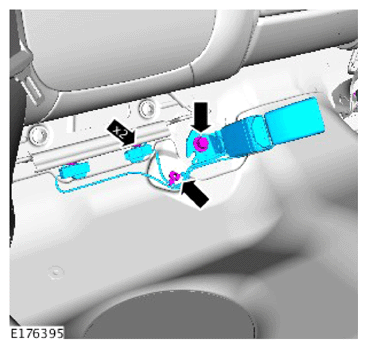

  5. G14011857Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 48Nm
