Front Safety Belt Retractor (G1858928): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component. Failure to follow this instruction may result in personal injury.

NOTE: Left illustration shown, right is similar.

The following step(s) applies to:

Vehicles with power seats

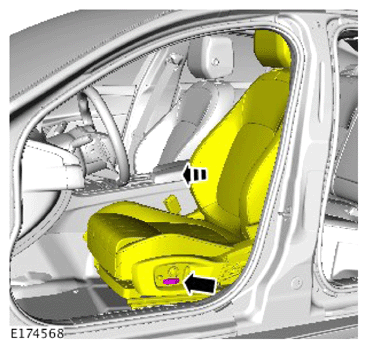

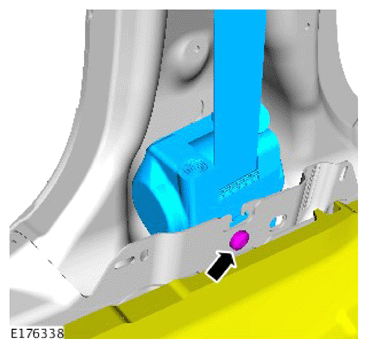

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

Vehicles without power seats

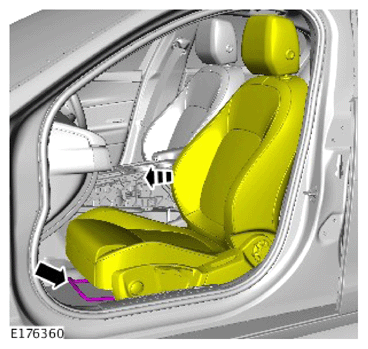

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

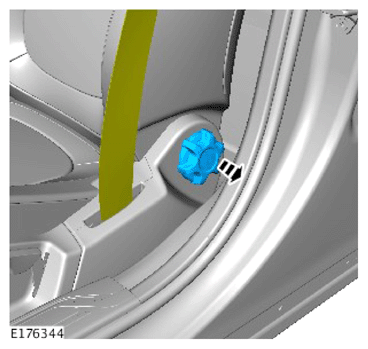

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

All vehicles

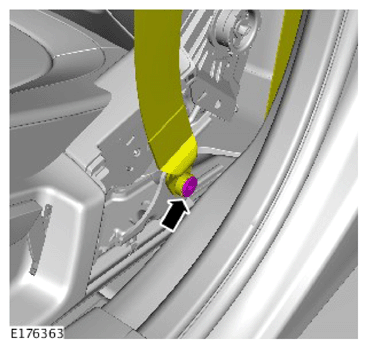

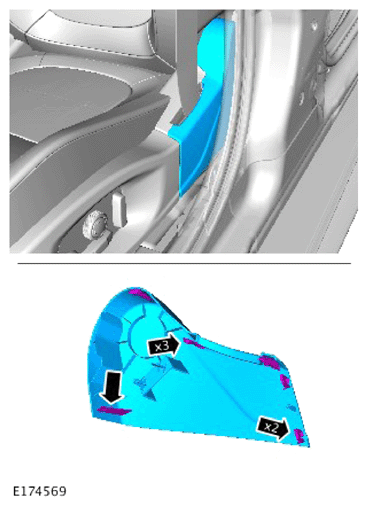

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

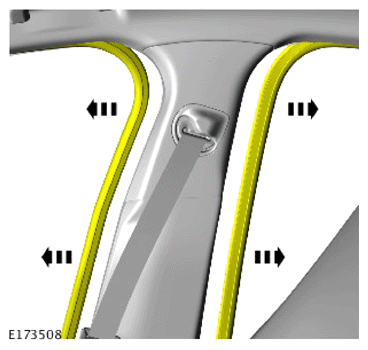

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40Nm
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
The following step(s) applies to:

Vehicles with power seats

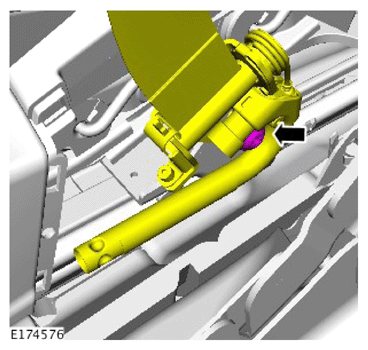

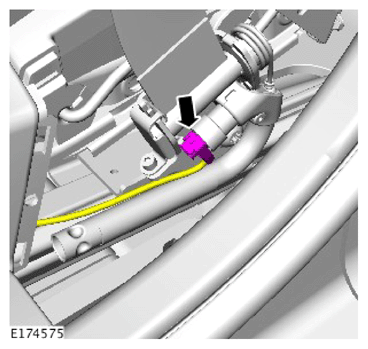

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40Nm

The following step(s) applies to:

All vehicles

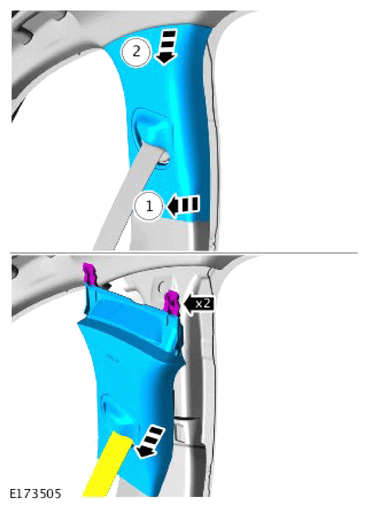

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Failure to follow this instruction may cause damage to the vehicle.

CAUTION: Make sure the locating dowels are installed correctly.

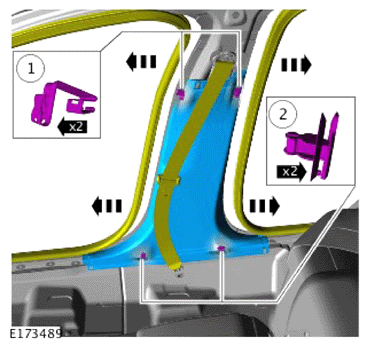

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Install new retaining clips.

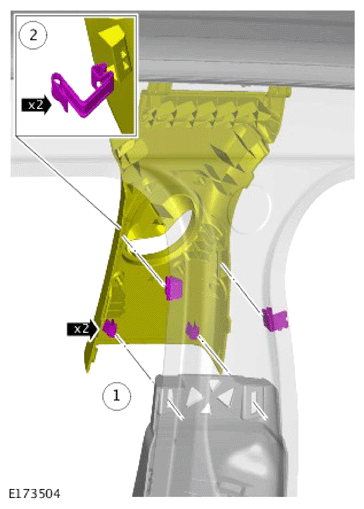

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Retaining clip(s) Quantity: 4 .

Renew Part: Retaining clip(s) Quantity: 4 .

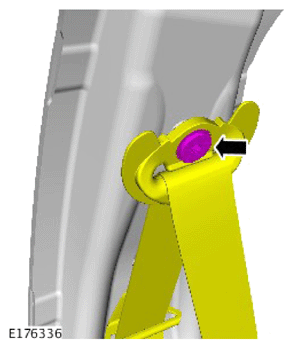

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40Nm

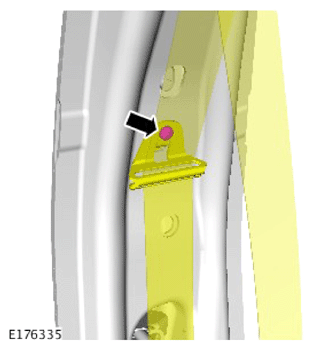

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm

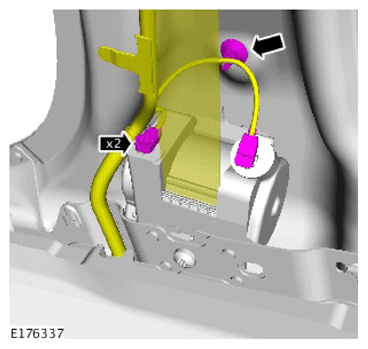

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40Nm

The following step(s) applies to:

Vehicles with power seats
NOTE: Do not disassemble further if the component is removed for access only.

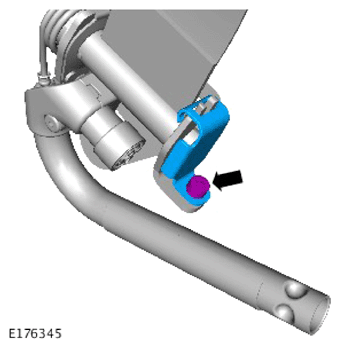

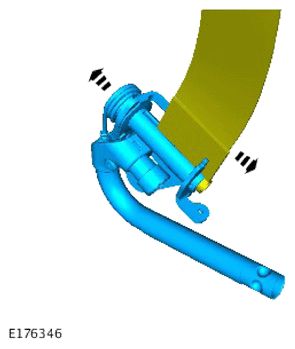

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 4Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
