Front Row SEATBELT - Project 8 (G2247565): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To prevent accidental deployment, you must power down the Restraints Control Module (RCM). Wait at least 2 minutes after disconnect the startup battery ground cable before doing any work on the Supplementary Restraint System (SRS). If you do not follow these instructions, it can cause injury or death.
Always wear safety glasses when working on an airbag equipped vehicle and when handling an airbag. Failure to follow this instruction may result in personal injury.
Do not connect any electrical test device or equipment to the Supplementary Restraint System (SRS) connectors.

NOTE:

This procedure contains illustrations for left side components, right side components are similar.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

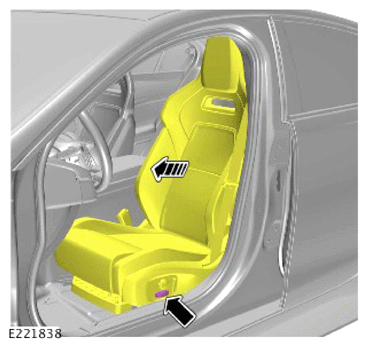

Move the front row seat forward.
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
To avoid accidental deployment, wait at least 2 minutes after you disconnect the startup battery ground cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the anchor cover of the front row seatbelt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

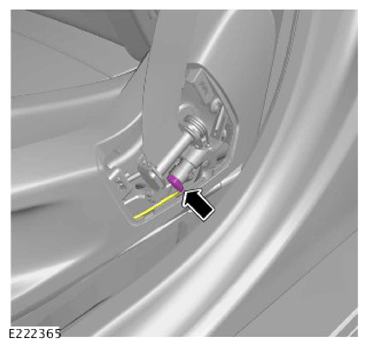

Disconnect the electrical connector from the front row seatbelt pretensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

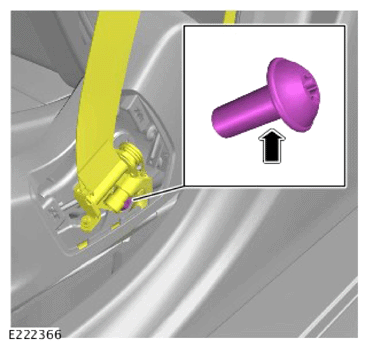

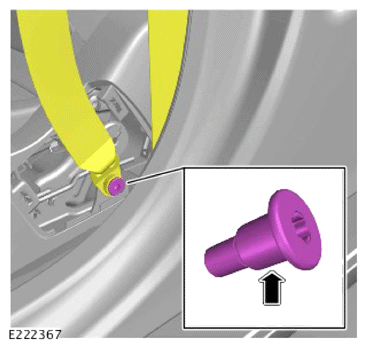

- Remove and discard the bolt.
- Release the lower anchor of the front row seatbelt.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the bolt.
- Release the front row seatbelt pretensioner.

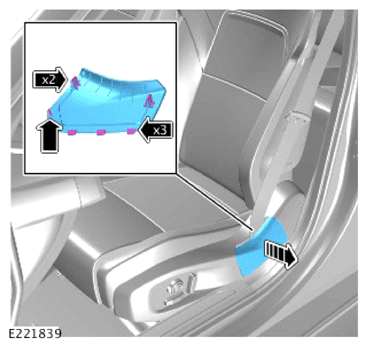

Remove the B-pillar lower trim panel.
Refer to: B-PILLAR LOWER TRIM PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

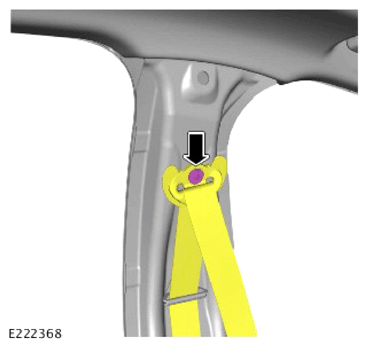

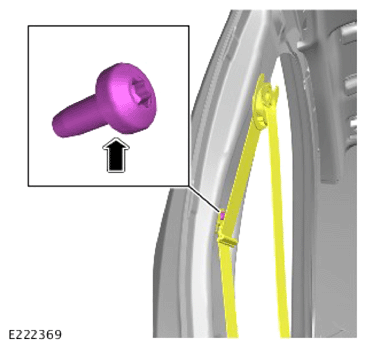

- Remove and discard the bolt.
- Release the front row seatbelt upper anchor from the B-pillar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Release the front row seatbelt guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

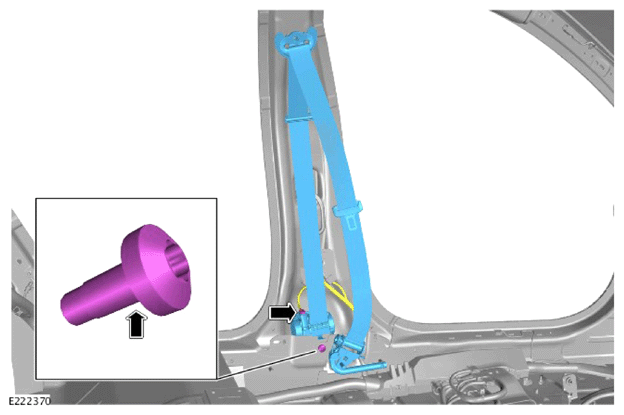

- Disconnect the electrical connector from the front row seatbelt retractor.
- Remove and discard the bolt.
- Remove the front row seatbelt retractor from the B-pillar.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

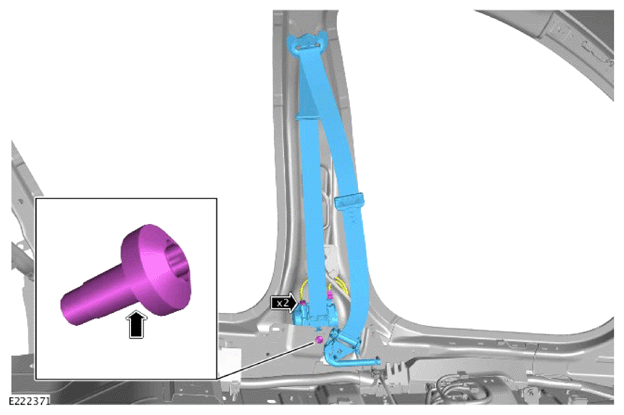

- Disconnect the 2 electrical connectors from the front row seatbelt retractor.
- Remove and discard the bolt.
- Remove the front row seatbelt retractor from the B-pillar.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

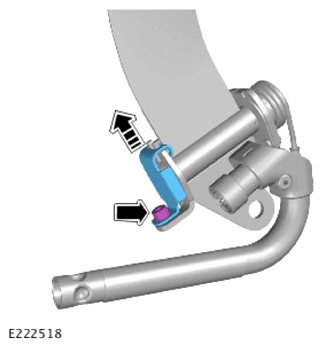

- Remove the bolt.
- Remove the retainer.
- Remove the pin.
- Remove the front row seatbelt pretensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

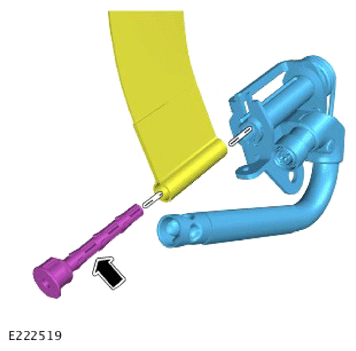

Remove the pin.
Remove the front row seatbelt pretensioner.
