4 Point Harness - Project 8 (G2246999): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

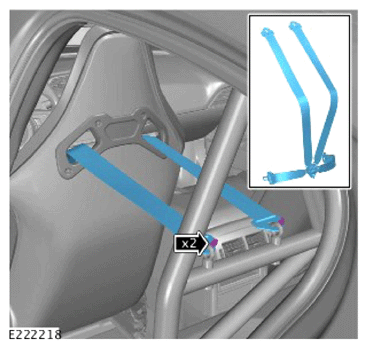

Release the 4-point harness from the front row seat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 4-point harness rear clips.
Remove the 4-point harness.
