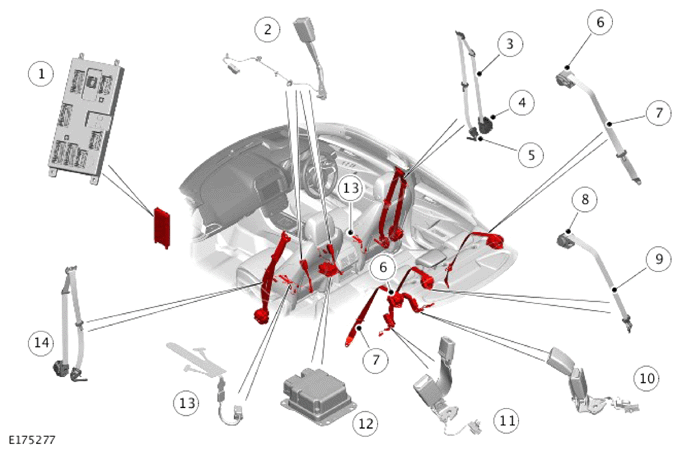

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RHD (Right Hand Drive) installation shown, LHD (Left Hand Drive) installation is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Front seatbelt buckle - 2 of |
| 3 | Driver seatbelt |
| 4 | Driver seatbelt retractor |
| 5 | Seatbelt anchor pretensioner |
| 6 | Rear seatbelt retractor - 2 of |
| 7 | Rear seatbelt - 2 of |
| 8 | Rear middle seatbelt retractor |
| 9 | Rear middle seatbelt |
| 10 | Rear right and middle seatbelt buckles |
| 11 | Rear left seatbelt buckle with minibuckle |
| 12 | Restraints Control Module (RCM) |
| 13 | Occupant detection sensor |
| 14 | Passenger seatbelt |
