Right Pedestrian Protection Hood Actuator (G1058454): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the cowl vent screen.
Refer to: COWL PANEL
-

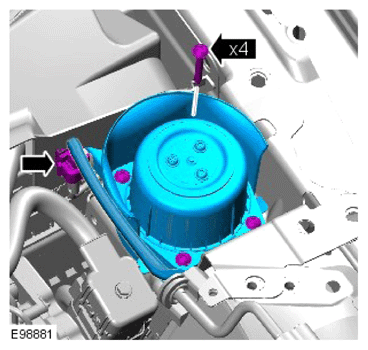

NOTE: Left-hand shown, right-hand similar.
Torque : 8Nm
