Pedestrian Impact Sensor (G1822166): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Make the supplementary restraint system (SRS) system safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
- Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: FRONT BUMPER - PROJECT 8

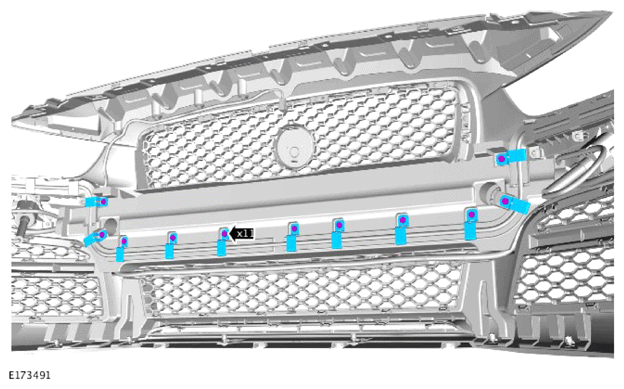

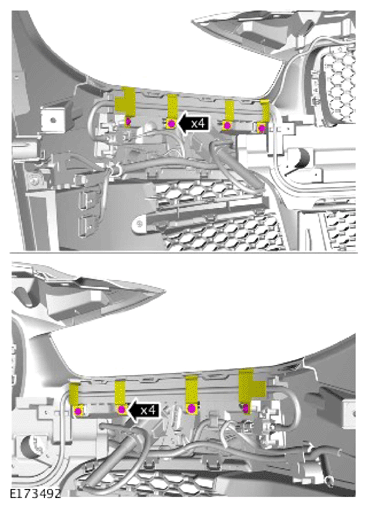

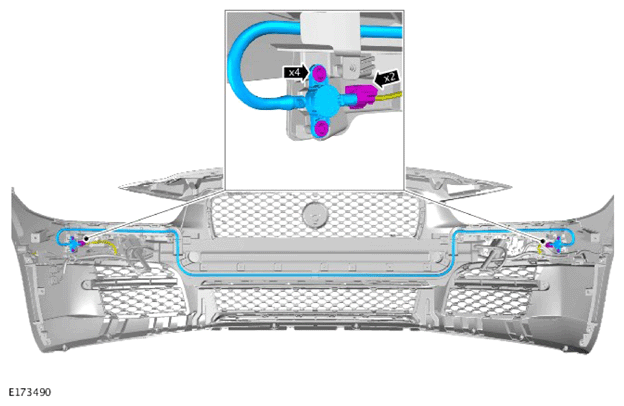

Torque : 2Nm
