Pressure Tube Foam
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

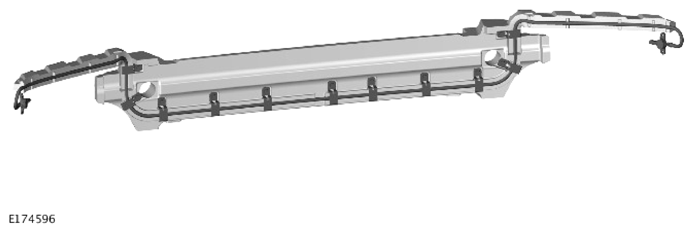

The pressure tube foam acts as a reaction surface for the silicon tube during an impact and defines the routing path for the tube. The 11 clips hold the silicon tube in the grove.
