Hood Deployment Controls
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

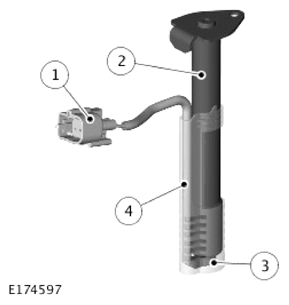

| ITEM |
DESCRIPTION |
| 1 |
Connector |
| 2 |
Hood deployment piston lifter |
| 3 |
Sealed connector |
| 4 |
Hood deployment piston sleeve |
The hood deployment controls are located on the front inner fenders just forward of the hood latches. The hood deployment controls comprise a pyrotechnic piston lifter to raise the hood.
