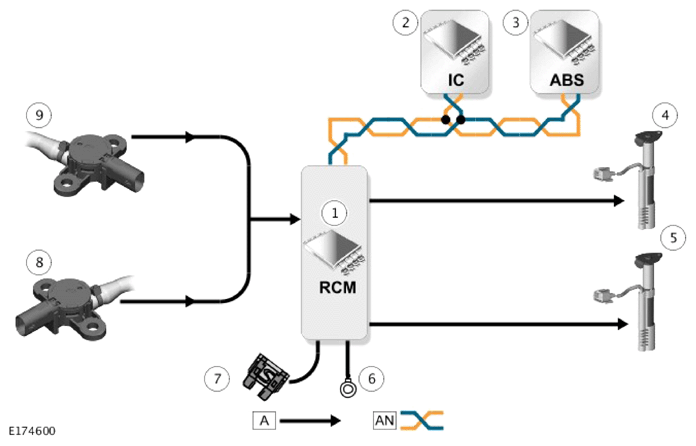

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AN = HS (HIGH SPEED) CAN (CONTROLLER AREA NETWORK) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Restraints Control Module (RCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Anti-Lock Brake System Control Module (ABS) |
| 4 | Right hood deployment control |
| 5 | Left hood deployment control |
| 6 | Ground |
| 7 | Power supply |
| 8 | Right front pressure sensor |
| 9 | Left front pressure sensor |
