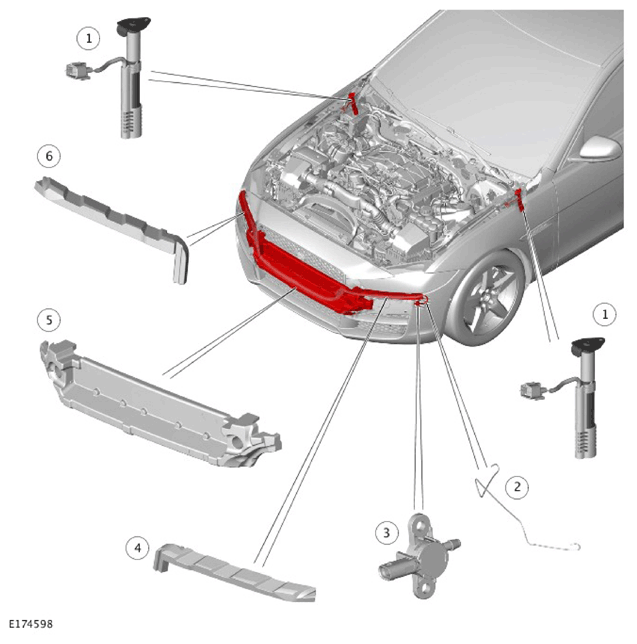

Component Location - Sheet 1 Of 2
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Hood deployment control (2 of) |
| 2 |
Pressure tube |
| 3 |
Pressure sensor (2 of) |
| 4 |
Left pressure tube foam |
| 5 |
Middle pressure tube foam |
| 6 |
Right pressure tube foam |
