Outer Constant Velocity Joint Boot (G2085467): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle using a suitable 2 post lift.
Refer to: LIFTING
- Remove the inner Constant Velocity (CV) joint boot.
Refer to: INNER CONSTANT VELOCITY JOINT BOOT

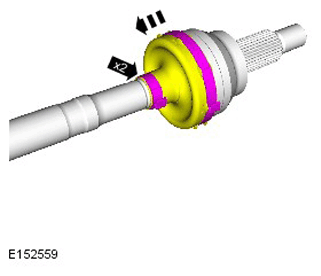

Remove the discard the 2 retaining clips.

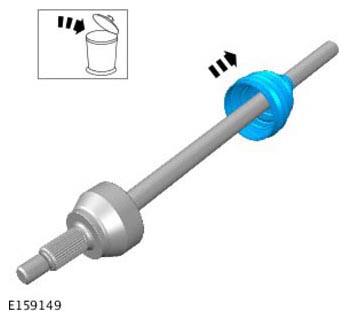

Remove and discard the outer CV joint boot.
