Outer Constant Velocity Joint Boot (G2085467): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Extreme cleanliness must be exercised when handling these components.

NOTE: Clean the Constant Velocity (CV) joint, removing as much of the old grease as possible.

Clean and inspect the components, renew if damaged or worn.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

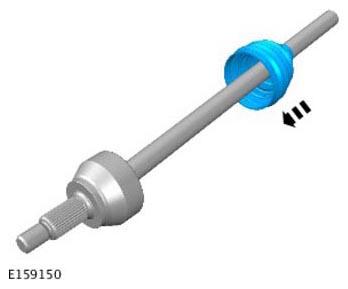

- Pack the outer CV joint with the grease supplied.
- Install the new outer CV joint boot.
Renew Part: Outer constant velocity joint boot kit Quantity: 1.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

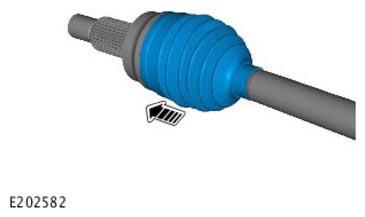

Make sure the outer CV joint boot is correctly installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable tool install the new CV joint boot clips.

General Equipment: Constant velocity (CV) boot clamp pliers
Install the inner constant velocity (CV) joint boot.
Refer to: INNER CONSTANT VELOCITY JOINT BOOT
