Inner Constant Velocity Joint Boot (G2085466): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear halfshaft
Refer to: REAR HALFSHAFT - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

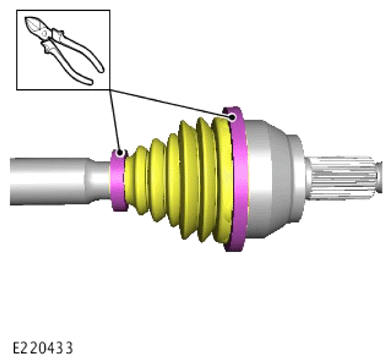

Remove and discard the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

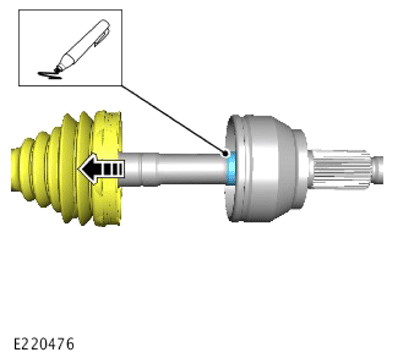

- Use a suitable cloth to clean the grease from the halfshaft.
- Mark the half shaft as illustrated.
CAUTION: Use suitable protective covers to protect the halfshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

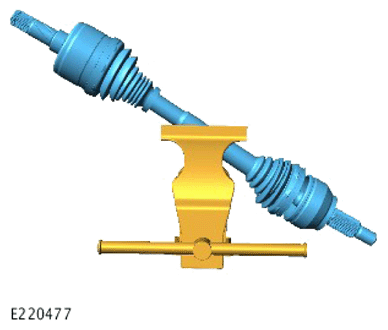

Secure the halfshaft in a vice.

General Equipment: Workbench with vice
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

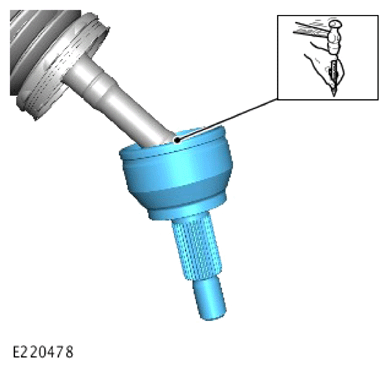

Use a suitable hammer and drift to strike against the inner part of the Constant Velocity joint (CV) to remove the CV joint from the halfshaft.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

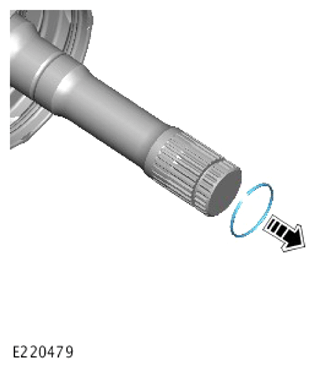

Remove and discard the halfshaft circlip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

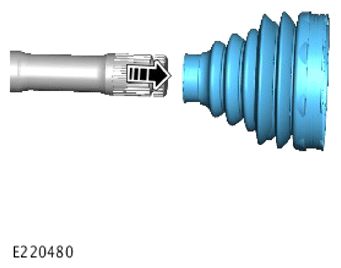

Remove and discard the inner CV joint boot.
