Inner Constant Velocity Joint Boot (G2085466): Installation
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
-
CAUTION: Extreme cleanliness must be exercised when handling these components.
Clean and inspect the components for deterioration.
-
NOTE: Do not tighten the CV joint boot clamp at this stage.
Install the new inner CV joint boot and inner boot clamp.
Renew Part: Inner constant velocity joint boot kit Quantity: 1.
-
CAUTION: Make sure that the circlip is installed from the end of the halfshaft to avoid damaging the circlip.
Install a new circlip to the halfshaft.
Renew Part: Circlip Quantity: 1.
- Install the CV joint outer boot clamp.
- Pack the inner CV joint with the grease supplied.

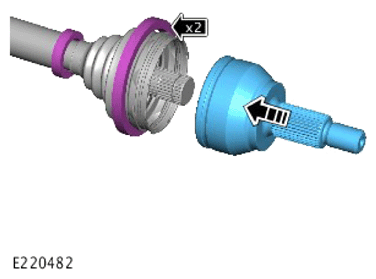

- Install the CV joint onto the halfshaft.

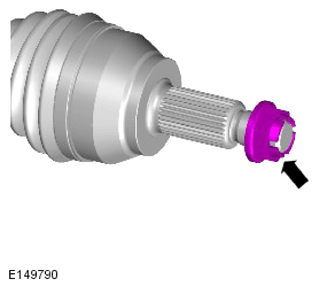

Install the original halfshaft nut onto the CV joint as illustrated to protect the threads.
-
NOTE: Make sure that the component is installed to the noted removal position.

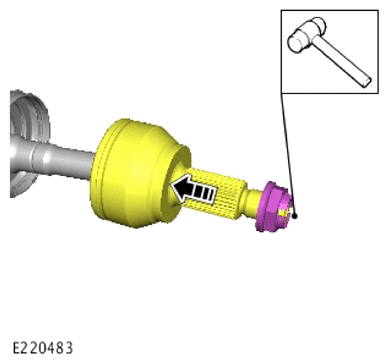

Use a suitable soft faced hammer to strike the CV joint in the direction shown.
- Remove the original halfshaft nut.
-
NOTE:
- Make sure that the inner CV joint boot is correctly installed.
- Make sure that the clips are installed in the correct orientation.
Use a suitable tool to secure the CV joint boot clamps to the inner CV joint.
- Install the rear halfshaft.
Refer to: REAR HALFSHAFT - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/V6 S/C 3.0L PETROL
