Torque specification
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use components.
COMPONENT TORQUE LOCATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

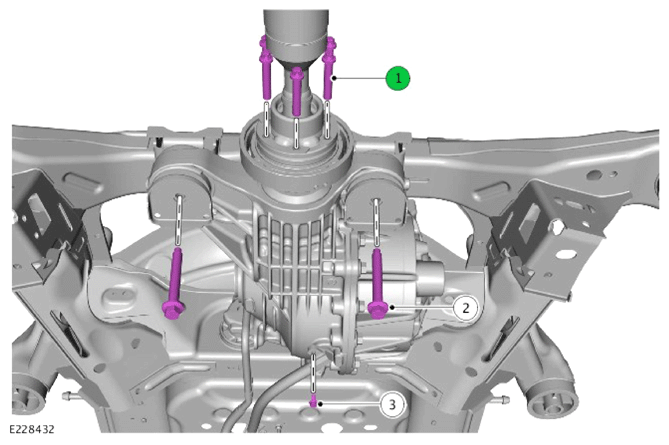

| 1 | Driveshaft to rear differential flange bolt | 75 | 55.3 | - |
| 2 | Differential front mounting bolt | 110 | 81.1 | - |
| 3 | Lower oil cooler pipe bolt | 6 | - | 53.1 |

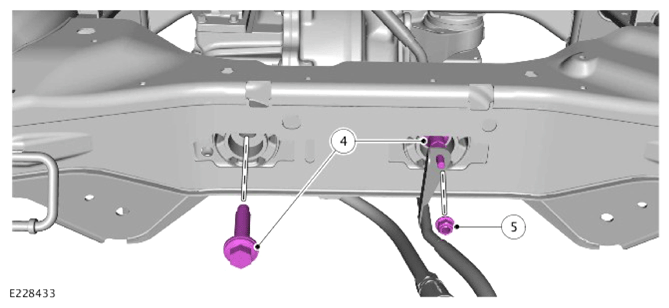

| 4 | Differential rear mounting bolt | 192 | 141.6 | - |
| 5 | Oil cooler pipe bracket nut | 10 | 7.3 | - |

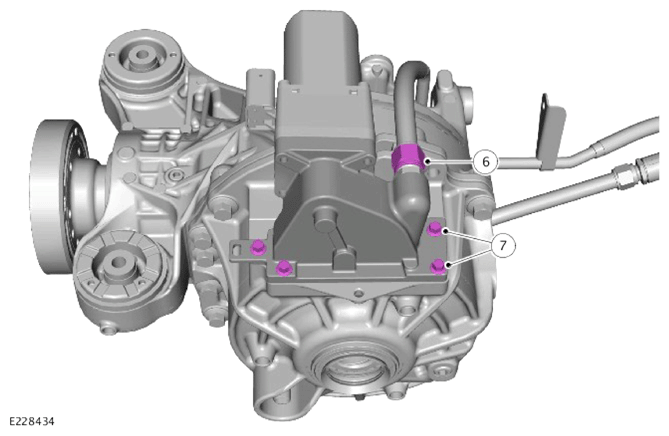

| 6 | Oil cooler pipe union | 30 | 22.1 | - |
| 7 | Electronic Torque Manager (ETM) bolt | 10 | 7.3 | - |

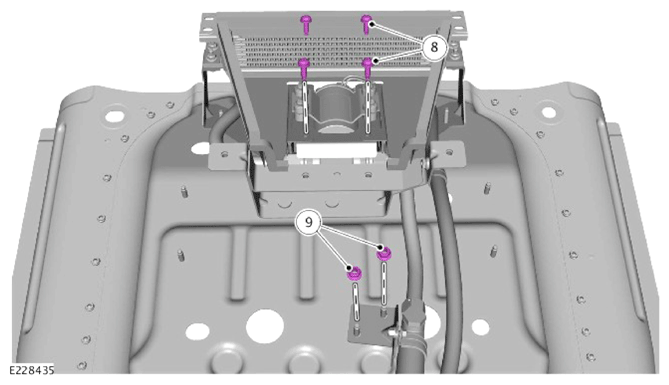

| 8 | Rear differential oil cooler duct bolt | 10 | 7.3 | - |
| 9 | Oil cooler pipe bracket nut to the body | 10 | 7.3 | - |

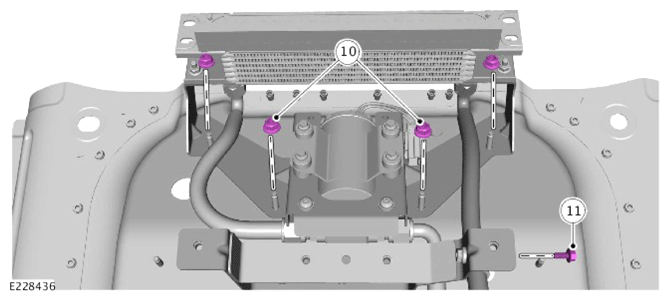

| 10 | Oil cooler bracket nut | 10 | 7.3 | - |
| 11 | Oil cooler pipe bracket bolt | 10 | 7.3 | - |
