Rear HALFSHAFT Seal (G2020021): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
General Equipment: 2 post lift
- Remove the rear halfshaft.
Refer to: REAR HALFSHAFT - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/V6 S/C 3.0L PETROL

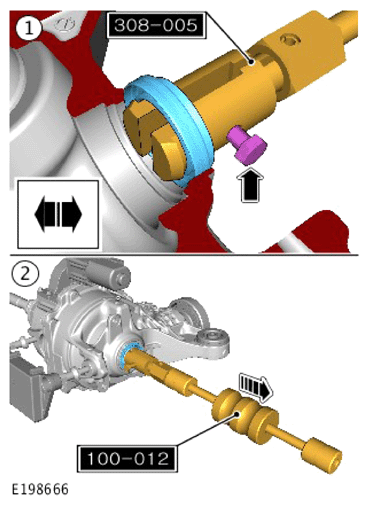

Using the special tools, remove and discard the halfshaft oil seal.
Special Tool(s): 100-012 , 308-005
