Rear HALFSHAFT Seal (G2020021): Installation
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

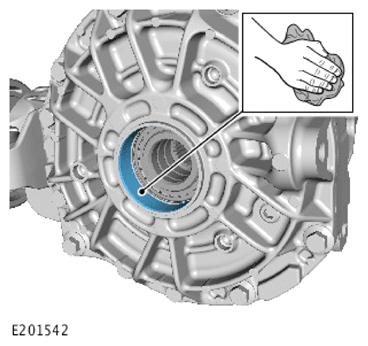

Make sure that the mating faces are clean and free of foreign material.
-

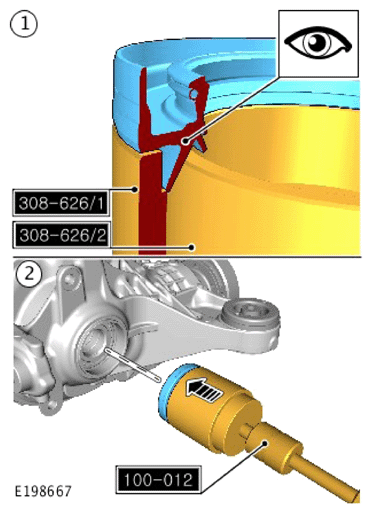

CAUTION: Make sure that the seal is correctly located on the tool.
Using the special tool, install a new halfshaft oil seal.
Special Tool(s): 100-012 , 308-626
- Install the rear halfshaft.
Refer to: REAR HALFSHAFT - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/V6 S/C 3.0L PETROL
