Rear Differential Oil Cooler - Project 8 (G2358258): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the rear differential.
Refer to: DIFFERENTIAL DRAINING AND FILLING - PROJECT 8
Remove the exhaust system centre section.
Refer to: EXHAUST SYSTEM CENTER SECTION
Remove the rear bumper.
Refer to: REAR BUMPER - PROJECT 8
Remove both the rear halfshafts.
Refer to: REAR HALFSHAFT - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/V6 S/C 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Mark the position of the driveshaft in relation to the rear drive axle flange.
CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 6 driveshaft to rear differential bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the rear differential oil cooler duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

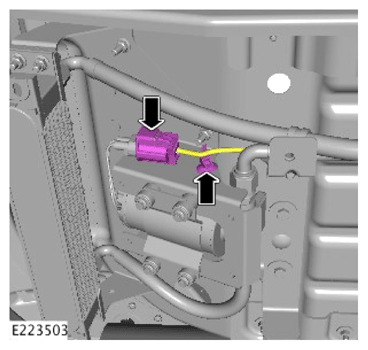

Disconnect the oil cooler pump electrical connector and release the wiring harness from the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the oil cooler pipe retaining bolt.
- Remove the 2 oil cooler pipe bracket retaining nuts
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the rear differential wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the temperature sensor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower oil cooler to rear differential pipe bolt and reposition the pipe away from the rear differential.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable stand support the rear differential.
  General Equipment: Transmission jack
- Remove the front lower rear differential mounting bolts and brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the rear differential bolts.
CAUTION: Take extra care not to damage the oil cooler pipe when lowering the rear differential.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lower the rear differential.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

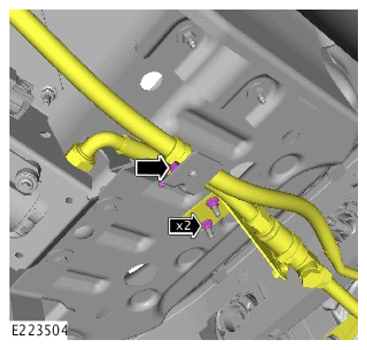

Remove the oil cooler pipe support bracket bolt and reposition the pipe away from the rear differential.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil cooler to Electronic Torque Manager (ETM) unit union.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

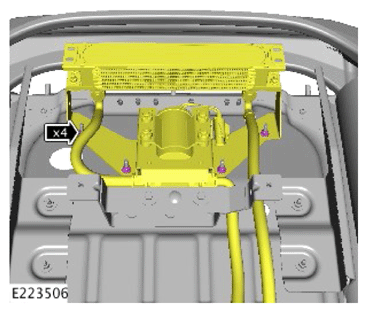

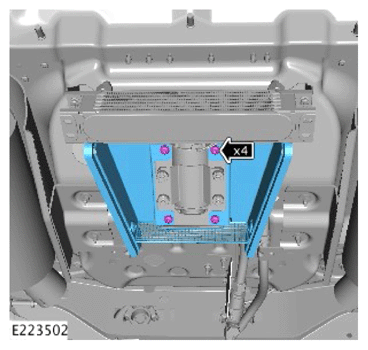

Remove the 4 oil cooler bracket retaining nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

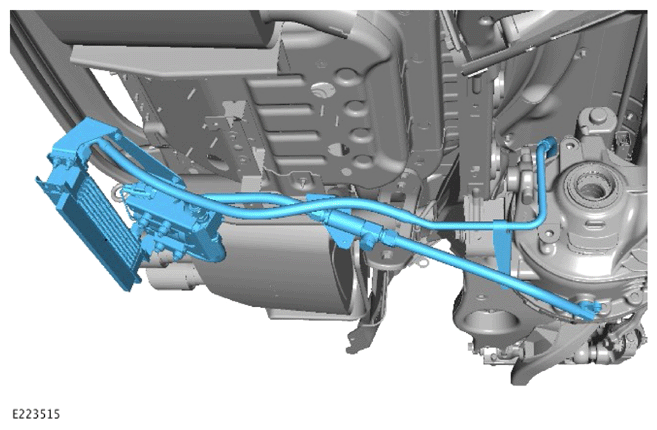

Remove the oil cooler assembly.
