Drive Pinion Seal Vehicles Without Heavy Duty Differential - INGENIUM I4 2.0L Diesel/INGENIUM I4 2.0L Petrol (G2131352): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping oil.

CAUTION: Make sure that all components and tools are clean and free from foreign material.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Drain the rear differential oil.
Refer to: DIFFERENTIAL DRAINING AND FILLING VEHICLES WITHOUT HEAVY DUTY DIFFERENTIAL
Remove the rear driveshaft.
Refer to: DRIVESHAFT - V6 S/C 3.0L PETROL

Refer to: DRIVESHAFT - INGENIUM I4 2.0L DIESEL

Refer to: DRIVESHAFT - INGENIUM I4 2.0L PETROL (G2028369)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

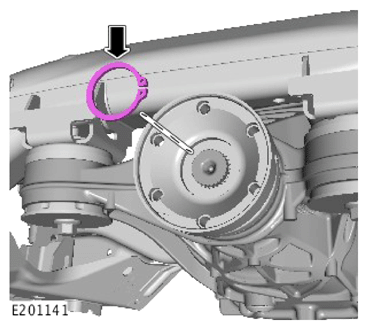

Remove the circlip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

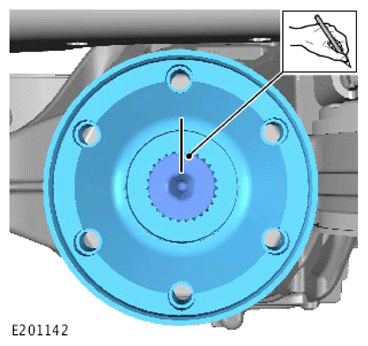

Mark the drive pinion shaft in relation to the drive flange.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

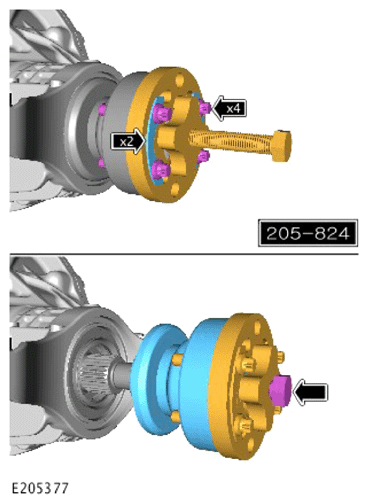

Using the special tool, remove the drive pinion flange.

Special Tool(s): 205-824
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

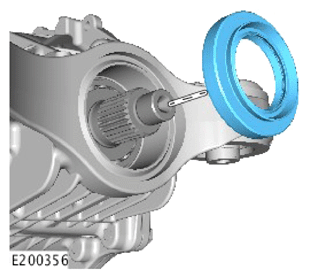

Carefully remove and discard the drive pinion oil seal.
