Drive Pinion Seal Vehicles Without Heavy Duty Differential - INGENIUM I4 2.0L Diesel/INGENIUM I4 2.0L Petrol (G2131352): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that all components and tools are clean and free from foreign material.

Clean the drive pinion seal mating faces.
CAUTION:
- Make sure the seal is installed to the correct end of the special tool.
- Make sure that the seal is not over inserted into the differential case.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

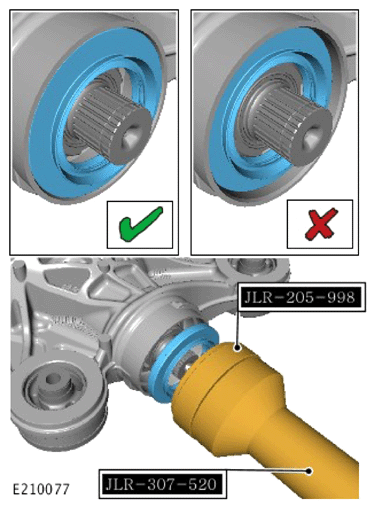

Use the special tools to install the new drive pinion seal.

Special Tool(s): 307-520 , JLR-205-998
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

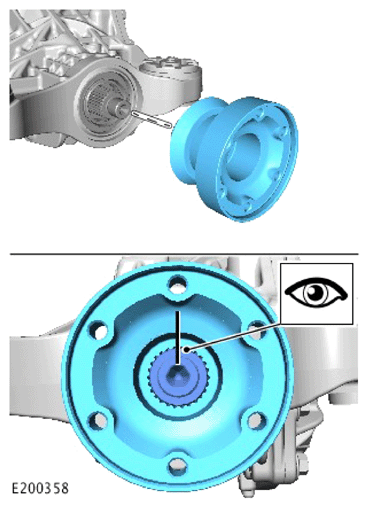

Install the drive pinion flange. Make sure the marks are correctly aligned.
Install the circlip.
Install the rear driveshaft.
Refer to: DRIVESHAFT - V6 S/C 3.0L PETROL

Refer to: DRIVESHAFT - INGENIUM I4 2.0L DIESEL

Refer to: DRIVESHAFT - INGENIUM I4 2.0L PETROL (G2028369)
Fill the rear differential.
Refer to: DIFFERENTIAL DRAINING AND FILLING VEHICLES WITHOUT HEAVY DUTY DIFFERENTIAL
