Differential Rear Bush (G2371300): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear subframe.
Refer to: REAR SUBFRAME
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

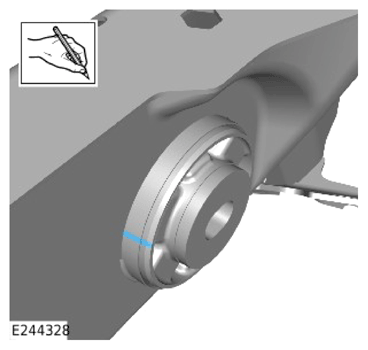

Mark the installed position of the differential rear bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

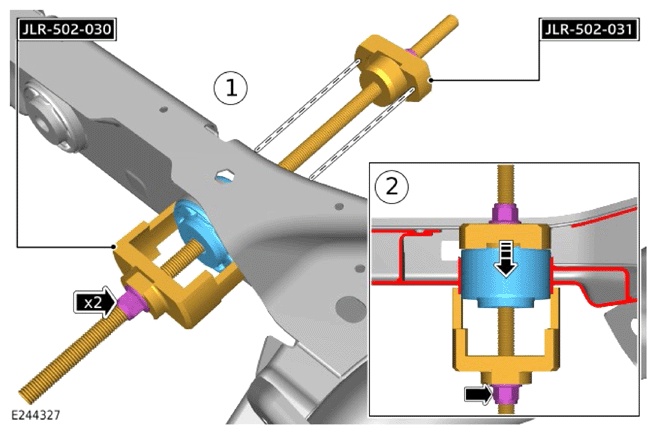

- Install the special tools as illustrated.
  Special Tool(s): JLR-502-030 , JLR-502-031
- Use the special tools to remove the differential rear bush.
- Remove the special tools.
- Remove the differential rear bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

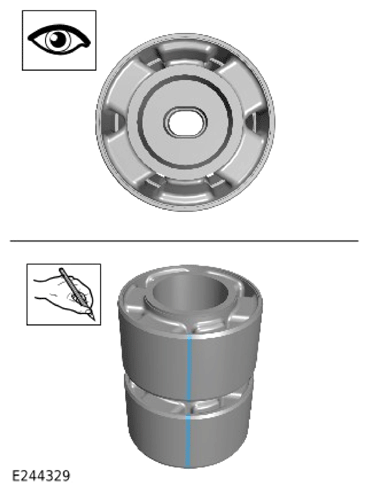

Align the new bush with the previously removed bush as illustrated.
Use the previously removed bush as a template to mark the new bush.
