Differential Rear Bush (G2371300): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Make sure the component is installed to the marked removal position.

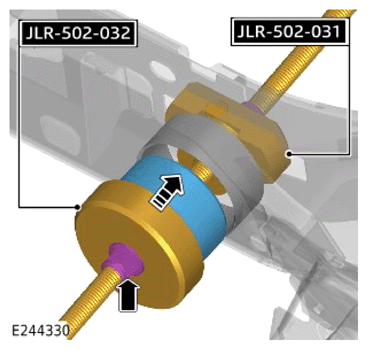

    G13902791Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tools and the differential rear bush as illustrated.

      Special Tool(s): JLR-502-031  , JLR-502-032

    • Use the special tools to install the differential rear bush.
    • Remove the special tools.
  2. Install the rear subframe.

    Refer to: REAR SUBFRAME
