Differential Front Bush (G1856525): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Remove the rear differential.

    Refer to: DIFFERENTIAL VEHICLES WITH HEAVY DUTY DIFFERENTIAL - INGENIUM I4 2.0L PETROL/V6 S/C 3.0L PETROL

    Refer to: DIFFERENTIAL VEHICLES WITHOUT HEAVY DUTY DIFFERENTIAL - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL

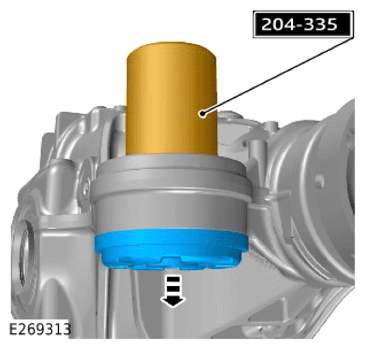

  4. G13902673Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to remove the differential front bush.

    Special Tool(s): 204-335
