Differential Front Bush (G1856525): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Make sure the new bushes are installed in the correct orientation.

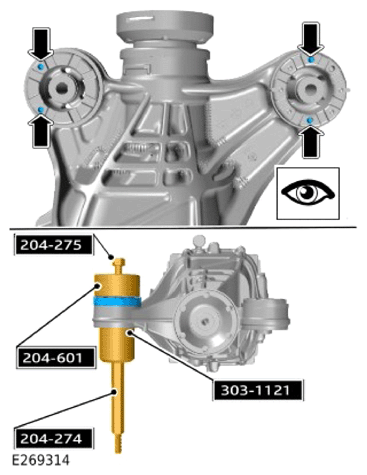

    G13902674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tools to install the differential front bush.

    Special Tool(s): 204-275  , 204-601  , 303-1121  , 204-274

  2. Install the rear differential.

    Refer to: DIFFERENTIAL VEHICLES WITH HEAVY DUTY DIFFERENTIAL - INGENIUM I4 2.0L PETROL/V6 S/C 3.0L PETROL

    Refer to: DIFFERENTIAL VEHICLES WITHOUT HEAVY DUTY DIFFERENTIAL - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL

  3. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
