Differential Draining And Filling - Project 8 (G2297028): Draining

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the rear undershield.

    Refer to: ENGINE UNDERSHIELD - PROJECT 8

  3. Place a suitable container under the rear differential.
  4. NOTE: Do not discard the differential fill plug at this stage.

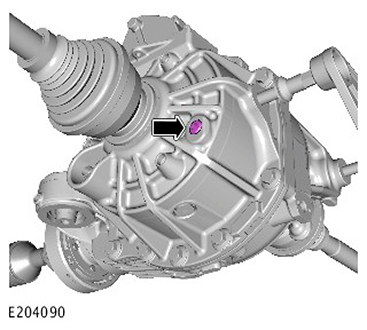

    G11439594Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the differential fill plug.

  5. G13996051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt.
    • Remove the oil cooler pipe from the differential.
  6. Allow the differential time to drain.
