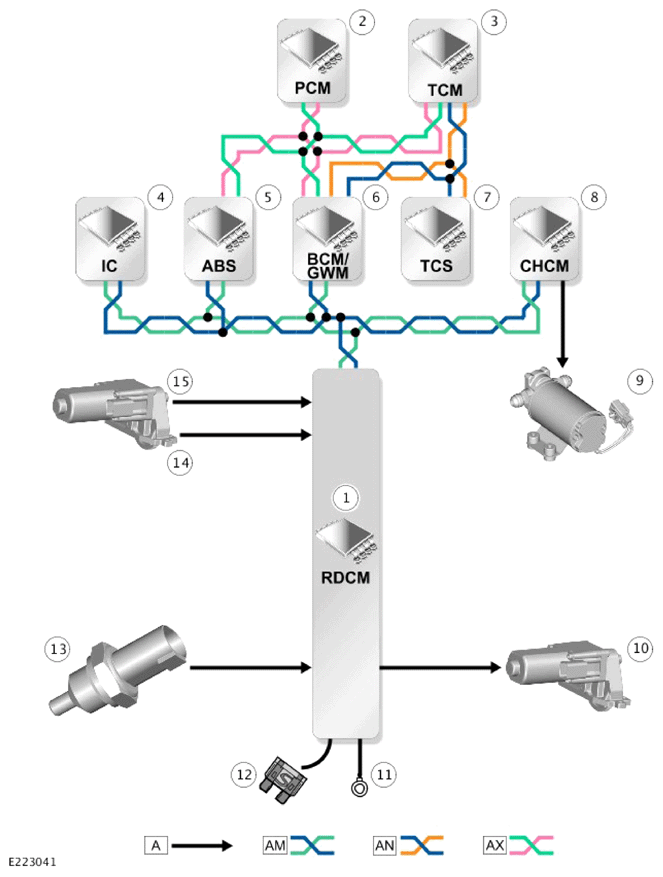

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear Differential Control Module (RDCM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Transmission Control Module (TCM) |
| 4 | Instrument Cluster (IC) |
| 5 | Anti-lock Brake System (ABS) control module |
| 6 | Body Control Module/Gateway Module (BCM/GWM) |
| 7 | Transmission Control Switch (TCS) |
| 8 | Chassis Control Module (CHCM) |
| 9 | Differential oil pump |
| 10 | Differential locking motor |
| 11 | Ground |
| 12 | Power supply |
| 13 | Oil temperature sensor |
| 14 | Position sensor - Differential locking motor (quantity 2) |
| 15 | Temperature sensor - Differential locking motor |
