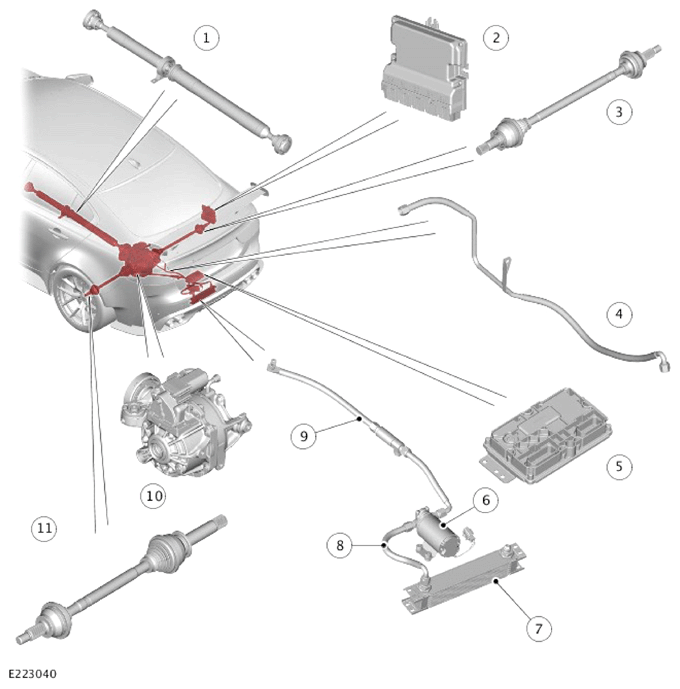

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear driveshaft |
| 2 | Chassis Control Module (CHCM) |
| 3 | Rear right halfshaft |
| 4 | Differential oil supply pipe |
| 5 | Rear Differential Control Module (RDCM) |
| 6 | Differential oil pump |
| 7 | Differential oil cooler |
| 8 | Differential oil intermediate pipe |
| 9 | Differential oil drain pipe |
| 10 | Electronic Torque Manager (ETM) rear differential |
| 11 | Rear left halfshaft |
