Open Differential - Fitted To Vehicles With A V6 Engine
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

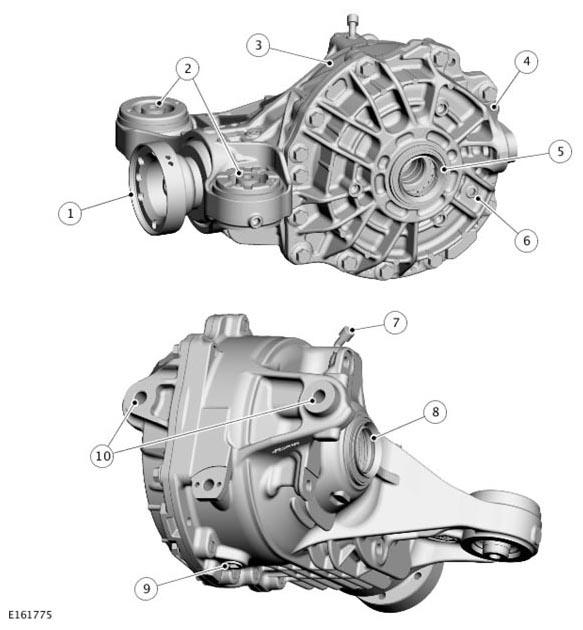

| ITEM |
DESCRIPTION |
| 1 |
Input flange |
| 2 |
Front mounting points with insulators |
| 3 |
Carrier |
| 4 |
Cover |
| 5 |
Halfshaft oil seal |
| 6 |
Filler/Level plug |
| 7 |
Breather |
| 8 |
Halfshaft oil seal |
| 9 |
Magnetic drain plug |
| 10 |
Rear mounting points |
