Open Differential - Fitted To Vehicles With A 4-Cylinder Engine
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

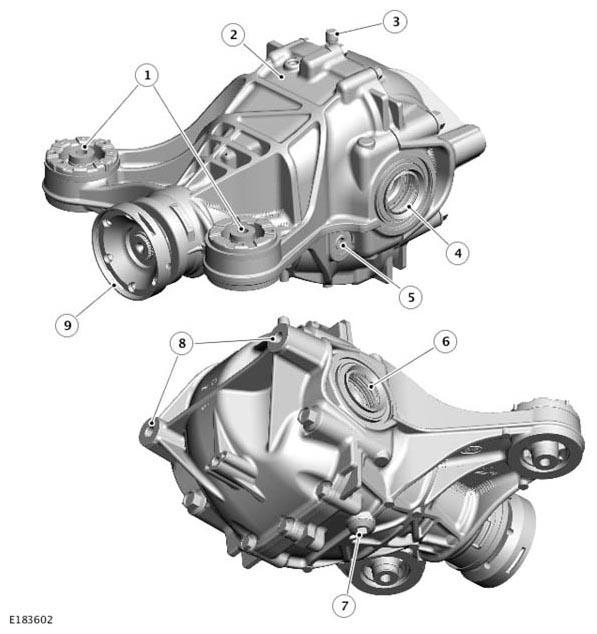

| ITEM |
DESCRIPTION |
| 1 |
Front mounting points with insulators |
| 2 |
Casing comprising a carrier and cover |
| 3 |
Breather |
| 4 |
Halfshaft oil seal |
| 5 |
Filler/Level plug |
| 6 |
Halfshaft oil seal |
| 7 |
Magnetic drain plug |
| 8 |
Rear mounting points |
| 9 |
Input flange |
