Side Proximity Camera (G1829859): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Removal steps in this procedure may contain installation details.
- Left shown, right is similar.
- The ignition must be switched off.
- Refer to: EXTERIOR MIRROR MOTOR
-

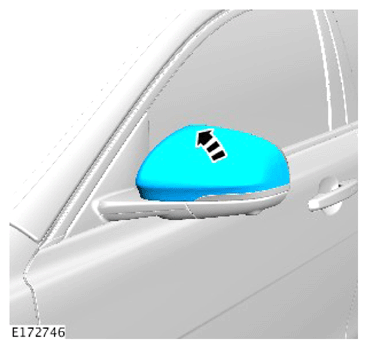

CAUTION: Use a suitable plastic trim tool to release the component.NOTE: Note the fitted position of the locating pegs.

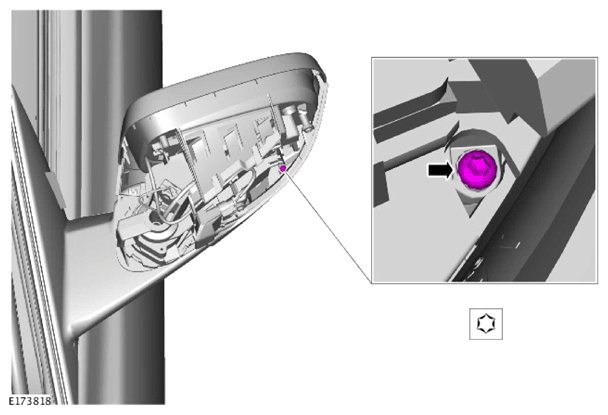

Torque : 0.5Nm
-

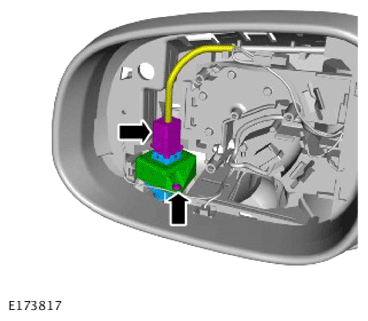

CAUTION: Take extra care not to damage the wiring harness clips.
Torque : 0.5Nm
