Parking Aid Control Module (PACM) (G1858919): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. Refer to: the appropriate Instrument Panel repair information

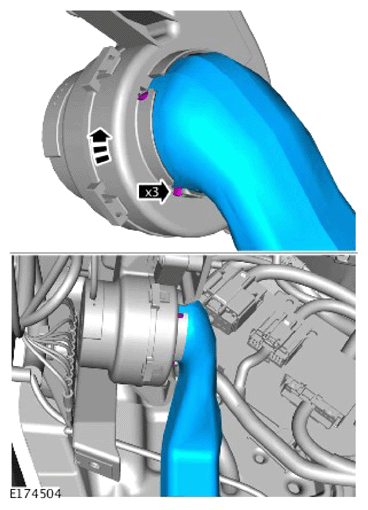

  3. G14008588Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

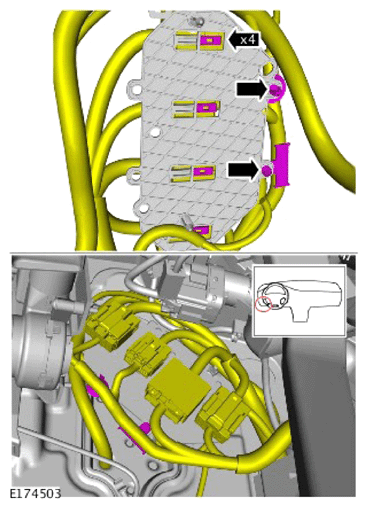

  4. CAUTION: Take extra care not to damage the wiring harnesses.
    G14008589Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

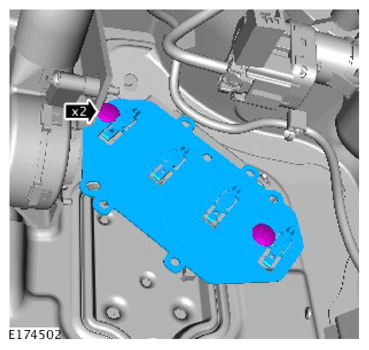

  5. G14008590Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

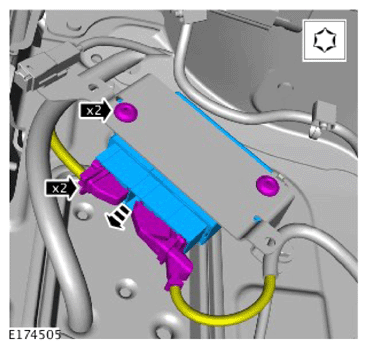

  6. G14008591Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 2.2Nm
